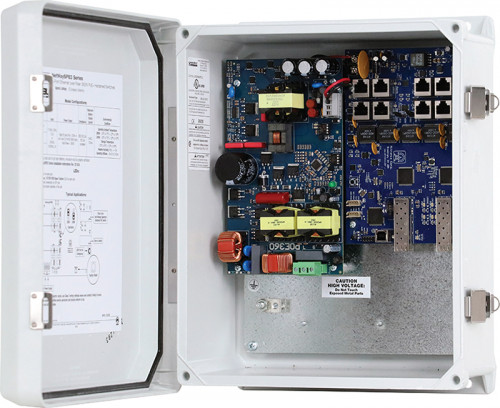

NetWaySP8WP37

Dual Fiber Optic SFP 1G Link, 8-port PoE+ switch and power supply. 277VAC input, NEMA4/4X, IP66 rated Outdoor enclosure.

For 115-230VAC input see model NetWaySP8WP3.

Altronix NetWaySP8WP37 supports up to 60W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and eight (8) PoE+ (30W) or two (2) Hi-PoE (60W) Ethernet ports. NetWaySP8WP37 accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere.

  • Input
    • Voltage: 277VAC, 50/60Hz, 2A
    • Input Fuse: 5A/250V
  • Power Output
      • Maximum Power:
        • Eight (8) PoE+ (30W) ports or two (2) Hi-PoE (60W) ports
        • IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant
        • 360W total power
        • Integral surge protection
      • SFP Ports:
        • Two (2) Gigabit SFP ports
  • Ethernet Ports
    • Six (6) 100 Mbps full duplex only (ports 1, 2, 3, 5, 7 and 8) and two (2) 10/100/1000 Mbps ports
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5e or higher structured cable
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
  • Battery Charging
    • Type: 48VDC charging circuit charges sealed lead acid* or gel type* batteries (require separate ventilated enclosure).
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately). (Separate ventilated enclosure is required)
  • Indicators (LED)
    • Individual PoE On LEDs for each port
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
    • ALOS LED indicates fiber connection for SFP port
    • Heartbeat LED indicates proper operation of the unit
  • VLAN
    • Multiple management VLAN assignment
    • 802.1Q Tagged VLAN
    • Up to 10 VLAN groups. ID Range 2-4095
  • LINQ Technology
    • Remote network power management allows for camera/device reset and diagnostic monitoring
    • Provides local and/or remote access to critical information via LAN/WAN
    • Email and Windows Dashboard Alert notifications report real-time events
    • Event log tracks history
  • Temperature
      • Operating Temperature:
        • 360W: – 30ºC to 70ºC (– 22ºF to 158ºF)
        • 240W: – 30ºC to 75ºC (– 22ºF to 167ºF)
    • Storage Temperature: - 30ºC to 85ºC (- 22º to 185ºF)
    • Relative Humidity: 85% +/- 5%
    • BTU/Hr.(approx.): 183 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

CE Compliant
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weight: 10.5 Lbs. (4.76 kg).
  • Shipping Weight: 11.9 Lbs. (5.4 kg).
