OLS127

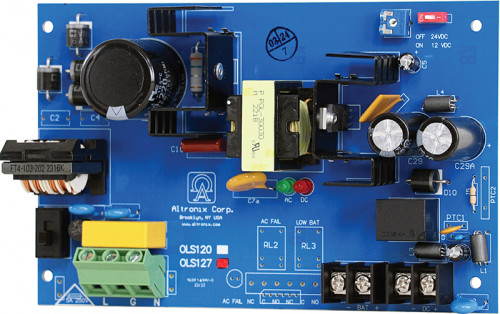

Off-Line Switching Power Supply/Charger, Single Output, 12/24VDC @ 4A, 115VAC, Board

Altronix OLS127 power supply/charger converts a 115VAC, 50/60Hz input into a 12VDC or 24VDC output. This unit has a wide range of applications for access control and security system accessories that require additional power.

  • Input
    • Voltage: 115VAC, 50/60Hz, 0.95A
  • Outputs
    • Voltage: 12VDC or 24VDC selectable
    • Current: 4A continuous supply current
    • Other: Short circuit and thermal overload protection
    • Filtered and regulated
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current 0.5A.
    • Automatic switch over to stand-by battery when AC fails.
    • (Batteries are sold separately).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Features
    • Power ON/OFF switch.
    • Battery leads included.
  • Electrical
    • Operating temperature: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 25 BTU/Hr.
        • 24VDC: 49 BTU/Hr.
Dimensions (approximate):
  • 4.5"W x 7.25"L x 1.75"H (114.3 mm W x 18.415 mm L x 44.45 mm H).
Weights (approximate):
  • Product Weight: 0.7 Lbs. (0.32 kg).
  • Shipping Weight: 0.9 Lbs. (0.41 kg).
