OLS180

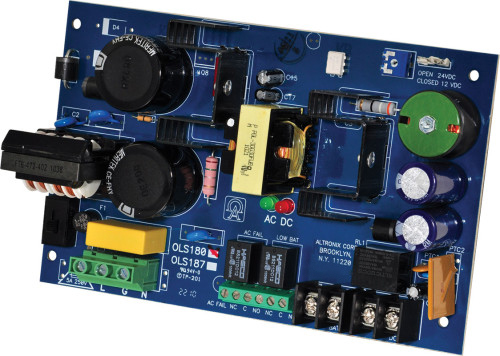

Power Supply Charger, Single Output, 12/24VDC @ 6A, 115VAC, Board

Altronix OLS180 power supply/charger converts a 115VAC, 60Hz input into a 12VDC or 24VDC output. This unit has a wide range of applications for access control and security system accessories that require additional power.

  • Input
    • 115VAC (working range 90VAC-132VAC), 50/60Hz, 1.9A.
  • Output
    • 12VDC or 24VDC selectable output.
    • 6A continuous supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current 0.7A.
    • Automatic switch over to stand-by battery when AC fails.
    • Battery leads included.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Features
    • Power ON/OFF switch.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 37 BTU/Hr.
        • 24VDC: 74 BTU/Hr.
    • System AC input VA requirement: 218.5VA.

CE Compliant
Dimensions (approximate):
  • 4.5"W x 7.25"L x 1.79"H (114.3 mm W x 184.15 mm L x 45.466 mm H).
Weights (approximate):
  • Product Weight: 0.9 Lbs. (0.4 kg).
  • Shipping Weight: 1.1 Lbs. (0.5 kg).
