OLS200220

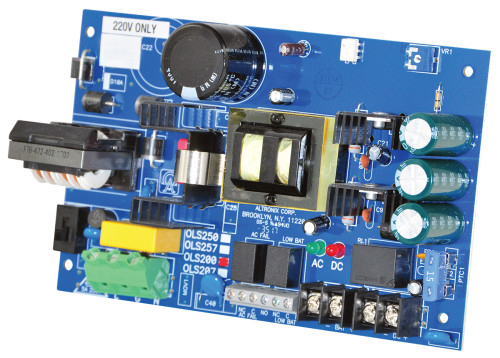

Power Supply Charger, Single Output, 12VDC @ 10A, 220VAC, Board

OLS200220 power supply/charger converts a 220VAC (working range 198VAC- 256VAC), 50/60Hz input into a 12VDC output @ 10A continuous supply current (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.

  • Input
    • 220VAC (working range 198VAC-256VAC), 50/60Hz, 0.95A.
  • Output
    • 12VDC output.
    • 10A continuous supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current 0.7A.
    • Automatic switch over to stand-by battery when AC fails.
    • Battery leads included.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Features
    • Power ON/OFF switch.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 61 BTU/Hr.

CE Compliant
Dimensions (approximate):
  • 4.5"W x 7.25"L x 1.75"H (114.3 mm W x 184.1 mm L x 44.45 mm H).
Weights (approximate):
  • Product Weight: 0.8 Lbs. (0.36 kg).
  • Shipping Weight: 1.04 Lbs. (0.47 kg).
