OLS20E

Power Supply Charger, Single Output, 12VDC 1A or 24VDC .5A, 115VAC, Board

Altronix OLS20E power supply/charger converts 115VAC 50/60Hz inputinto a 12VDC @ 1A or 24VDC @ 0.5A of continuous supply current (refer to specifications). This general purpose power supply has a wide range of application for access control and security system accessories that require additional power.

  • Input
    • 115VAC, 50/60Hz, 0.5A.
  • Output
    • 12VDC or 24VDC selectable operation.
    • 0.5A continuous supply current @ 24VDC*; 1A continuous supply current @ 12VDC*.
    • Filtered and electronically regulated outputs.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current 0.3A.
    • Automatic switch over to stand-by battery when AC fails.
    • Battery leads included.
    • (Batteries are sold separately).
  • Additional Features
    • AC input and DC output LED indicators.
    • Includes battery leads.
  • Temperature
    • Operating: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 6 BTU/Hr.

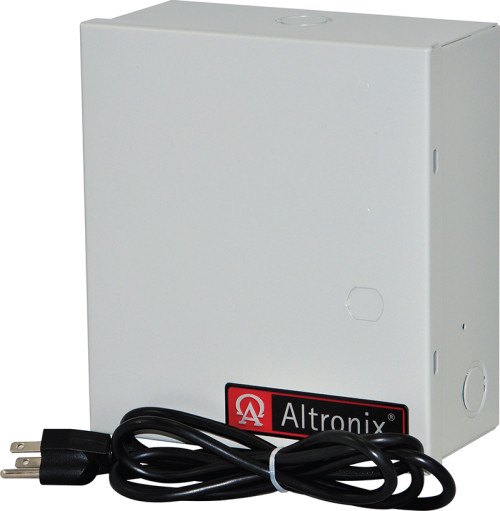

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 3.3 Lbs. (1.5 kg).
  • Shipping Weight: 4.3 Lbs. (1.95 kg).
