PD4

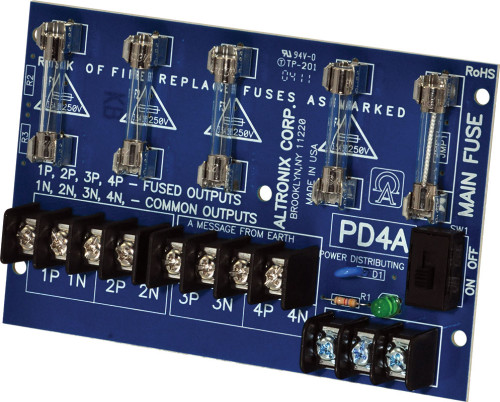

Power Distribution Module, 4 Fused Outputs up to 28VAC/VDC, Board

Altronix PD4 power distribution module is designed to convert a single AC or DC input into four (4) individually fuse protected outputs.

  • Input
    • 28VAC or 28VDC max., up to 10A.
  • Output
    • Four (4) fuse protected outputs.
    • Fuses rated @ 3.5A/250V.
    • Surge suppression.
  • Features
    • Power LED indicator.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%
Dimensions (approximate):
  • 3.25"W x 5.21"L x 1"H (82.55 mm W x 1132.334 mm L x 25.4 mm H).
Weights (approximate):
  • Product Weight: 0.15 Lbs. (0.07 kg).
  • Shipping Weight: 0.25 Lbs. (0.11 kg).
