PDS8CBK1

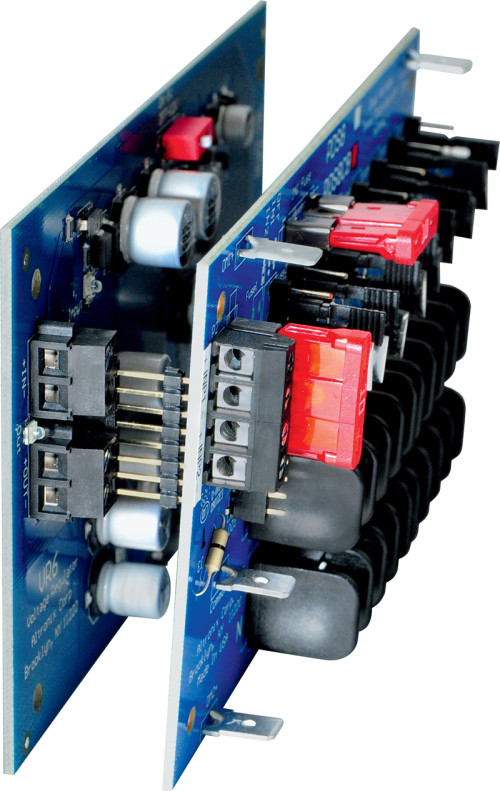

Kit includes: VR6 Voltage Regulator and PDS8CB Power Distribution

Altronix VR6 Voltage Regulator converts a 24VDC input into a regulated 5VDC or 12VDC selectable output at up to 6A supply curent. It reduces the cost of adding an additonal power supply to achieve 24VDC and 12VDC or 5VDC simultaneously. / Altronix PDS8CB dual input power distribution module is designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of eight (8) PTC protected outputs.

  • VR6
      • Power Input / Output:
        • Input: 24VDC @ 1.75A – Output: 5VDC @ 6A.
        • Input: 24VDC @ 3.5A – Output: 12VDC @ 6A.
      • Output:
        • 5VDC or 12VDC regulated output.
        • Output rating 6A max. non power-limited.
        • Surge suppression.
      • LED Indicators:
        • Input and output LEDs.
      • BTU/Hr (approx.):
        • 5VDC: 15 BTU/Hr.
        • 12VDC: 37 BTU/Hr.
  • PDS8CB
      • Power Input 1 and Input 2 Voltage Range:
        • 5VDC to 24VDC up to 9A each or 16VAC to 28VAC up to 9A each.
      • Outputs:
        • Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
        • PTC protected outputs rated @ 2A. (total output current should not exceed max current rating of power supply employed).
        • Surge suppression.
      • LED Indicators:
        • Individual voltage LED indicates 12VDC (Green) or 24VDC (Red/Green).
  • Temperature
      • VR6, PDS8CB
        • Operating Temperature 0ºC to 49ºC (32ºF to 120ºF).
        • Storage Temperature - 20ºC to 70ºC ( - 4ºF to 158ºF).
        • Relative Humidity 85% +/- 5%.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

Components of this kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
PDS8CB 1 Dual Input Power Distribution Module, 8 PTC Outputs
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
Dimensions (approximate):
  • 0"W x 0"L x 0"H (0 mm W x 0 mm L x 0 mm H).
Weights (approximate):
  • Product Weight: 0.8 Lbs. (0.36 kg).
  • Shipping Weight: 1 Lbs. (0.46 kg).
