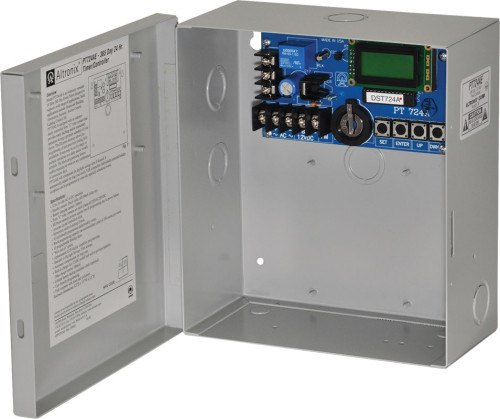

PT724AE

Timer, 365 Day 24 Hour Annual Event, 1 Channel, LCD Display, Battery Charger, Board

PT724AE is an extremely versatile 24 Hour 365 Day Event Timer designed to support a wide range of applications: Home and Building Automation, Security, Access Control, Lighting Control, Etc. The PT724AE is equipped with an independently controlled form "C" relay contact that provides many latching and/or momentary operations during a program schedule of your choice. Events may be set for single or multiple operations on a daily and/or weekly schedule.

  • Input
    • 12 to 24 volts AC or DC operation.
  • Relay
    • Form "C" relay contacts are rated 10A @ 120VAC/28VDC.
    • Standby current: 10mA (relay off) 50mA (relay on).
  • Features
    • EE Prom memory protects against loss of programming due to power failure.
    • Accurate crystal controlled clock.
    • Momentary and/or Latching Events.
    • 50 individually programmed daily/weekly events.
    • Block programming capacity can accommodate a total of 350 events per week.
    • 10 programmable Holiday dates.
    • "First man in" option.
    • Standard or Daylight Savings Time settings.
    • Automatic compensation for leap year.
  • Visual Indicators
    • Alphanumeric LCD display simplifies programming.
  • Battery Charging
    • Built-in charger for 12VDC sealed lead acid or gel type batteries (Max charge current 100mA).
    • Optional lithium battery backup maintains clock. Order Altronix part # LB2032.
    • (Batteries are sold separately).
  • Temperature
    • Operating: -20ºC to 49ºC ( -4ºF to 120ºF).
    • Storage: -25ºC to 70ºC ( -13ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/4AH Batteries.
  • Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 0.48 Lbs. (0.22 kg).
  • Shipping Weight: 0.5 Lbs. (0.23 kg).
Print
*Batteries sold separately
