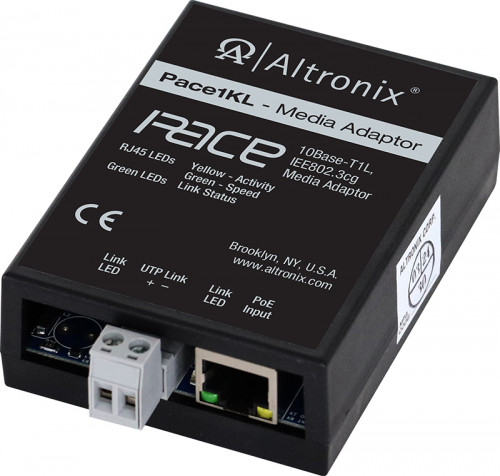

Pace1KL

Long Range Single Pair Media Adapter, 1000m SPE over twisted pair (UTP), IEEE802.3cg, 10Base-T1L

Altronix Pace1KL is a SPE (Single Pair Ethernet) media converter/adaptor that enables connecting 10Base-T1L, IEE802.3cg compliant devices such as Security/Industrial/BMS/ Elevators/HVAC Controllers and sensors, etc. to an Ethernet network. Long distance headend to remote-end device cabling can be achieved to over 1km (1,000m, 3,280 ft.).

In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks, i.e. LONworks, RS485, 4-20mA Control Loops, etc. can be achieved by using the existing two wire cabling, thus saving rip-out & reinstallation costs.

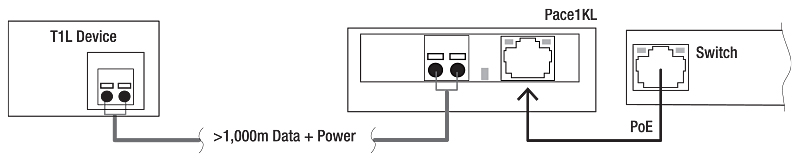

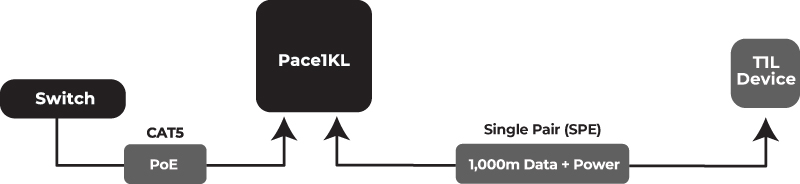

Operationally, the Pace1KL is connected to a POE midspan/endspan switch at the headend and passes network data from the switch via UTP up to 1km (1,000m, 3,280 ft.) to the remote T1L device.

  • Input
    • Powered by PoE midspan or endspan.
  • SPE (Single Pair Ethernet) over UTP or 16/2 AWG or Higher link
    • Wire type: Twisted pair (2-wire, UTP).
    • Distance: 1km (1,000m, 3,280 ft.) @ 10Mbps
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or higher.
    • Distance: up to 100m from midspan.
    • Speed: 10/100BaseT, half/full duplex, auto negotiation.
  • LED Indicators
      • Green LED (right):
        • Data transmission (link) over SPE
      • Yellow and Green LED (RJ45 jack):
        • IP Link status, 10/100Base-T/active.
  • Electrical
      • Temperature:
        • Operating: – 40º C to 75º C (– 40º F to 167º F).
        • Storage: – 40º C to 75º C (– 40º F to 167º F).
    • Relative Humidity: 85% +/- 5%.
    • Operating Altitude: – 304.8 to 2,000m.

CE Compliant
Enclosure:
  • Modular plastic case.
  • Dimensions 2.5"W x 1"H x 3.8"D (64 mm W x 25 mm H x 97 mm D).
Weights (approximate):
  • Product Weight: 0.22 Lbs. (0.1 kg).
  • Shipping Weight: 0.4 Lbs. (0.18 kg).
