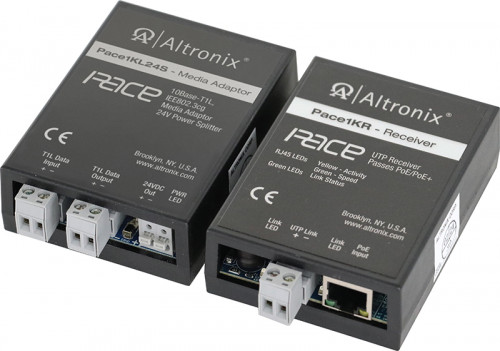

Altronix Pace1KRL24S is SPE (Single Pair Ethernet) media adaptors/splitters kits that enable connecting 10Base-T1L, IEE802.3cg compliant devices such as Security/Industrial/BMS/Elevators/HVAC Controllers and sensors, etc. to an Ethernet network. The kit provides T1L data & 24V power separately to power the remote device, thus eliminating the need for local power. Long distance headend to remote-end device cabling can be achieved to over 1km (1,000m, 3,280 ft.).
In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks, i.e. LONworks, RS485, 4-20ma Control Loops, etc. can be achieved by using the existing two wire cabling, thus saving rip-out & reinstallation costs.

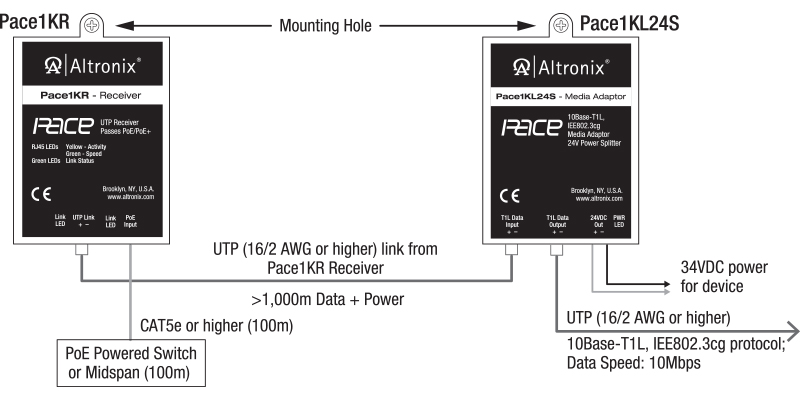

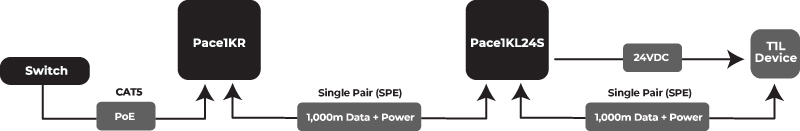

Operationally, the Pace1KR passes network data & POE power from the POE switch via UTP up to 1km (1,000m, 3,280 ft.) to the Pace1KL24S, which then passes the T1L data to the device and separately provides 24V power to the device.
