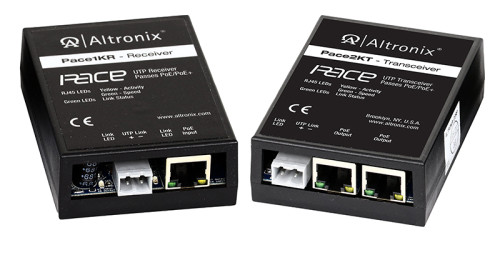

Long Range Single Pair (UTP) Ethernet Adapter Kit includes: Pace1KR Receiver and Pace2KT Transceiver

For single port connectivity please see kit model: Pace1KRT

Altronix Pace2KRT is a long-range Ethernet adapter kit solution that transmits data and power via twisted pair (2-wire, UTP or shielded) in a PoE(+) compliant format. In addition to new SPE (UTP) Ethernet network installations for Surveillance cameras/Security/Industrial/BMS/HVAC/Elevator Controllers, applications include upgrading of legacy networks, i.e. LONworks, RS485, 4-20ma Control Loops, etc. by using the existing two wire cabling, thus saving rip-out & reinstallation costs.

Operationally, the Pace1KR is connected to a POE midspan/endspan switch at the headend and passes network data and power to the Pace2KT from the switch via UTP up to 1km (1,000m, 3,280 ft.) to two (2) remote 10/100 POE devices, such a as a camera/s or controllers. Data is only supplied to the remote device for non-enabled devices. Cable distances and multi-node device drop-offs are facilitated by using one of the two Pace2KT ports for the continued network link in a daisy chain manner.

  • Input
      • Pace1KR:
        • Powered by midspan or endspan
        • PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (25W)
      • Pace2KT:
        • Powered by Pace1KR
  • UTP Connection
    • Wire type: Twisted pair (2-wire, UTP or shielded)
    • Distance: 1km (1,000m, 3,280 ft.), 16/2 AWG or higher @ 10Mbps
  • Ethernet Connection
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair, CAT5e or higher.
    • Distance: up to 100m from midspan to Pace1KR receiver (headend), 100m from PaceKT transceiver to device
    • Speed: 10/100BaseT, half/full duplex, auto negotiation.
    • PoE: IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (25W) delivered to device by Pace1KR Power provided by Pace1KR to Pace2KT by PoE protocol.
  • Indicators (LED)
    • Green LED (left): PoE (link)
    • Green LED (right): Data transmission (link)
    • Yellow and Green LED (by RJ45 jack): IP Link status, 10/100Base-T/active.
  • Electrical
      • Temperature:
        • Operating: – 40º C to 75º C (– 40º F to 167º F).
        • Storage: – 40º C to 75º C (– 40º F to 167º F).
    • Relative Humidity: 85% +/- 5%.
    • Operating Altitude: – 304.8 to 2,000m.
CE Compliant
  • Modular plastic case.
  • Dimensions 2.5"W x 1"H x 3.8"D (64 mm W x 25 mm H x 97 mm D).
Weights (approximate):
  • Product Weight: 0.4 Lbs. (0.18 kg).
  • Shipping Weight: 1 Lbs. (0.45 kg).
