SMP10

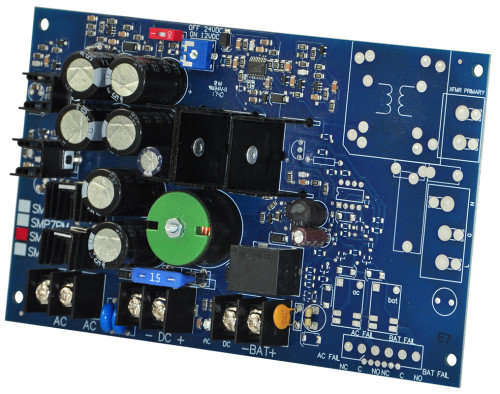

Power Supply Charger, Single Output, 12/24VDC @ 10A, 24VAC, Board

SMP10 power supply/charger converts low voltage AC input into 12VDC or 24VDC @ 10A of continuous supply current (refer to specifications). This general purpose power supply has a wide range of applications for access control, security and CCTV system accessories that require additional power (Voltage Output/Transformer Selection Table).

  • Input
    • Input 24/28VAC.
  • Output
    • 12VDC or 24VDC selectable output.
    • 10A supply current.
    • Filtered and electronically regulated outputs.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current 0.7A.
    • Zero voltage drop when switching over to battery backup.
    • (Batteries are sold separately).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C (-4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 61 BTU/Hr.
        • 24VDC: 123 BTU/Hr.
Dimensions (approximate):
  • 7"W x 4.25"L x 1.25"H (177.8 mm W x 107.9 mm L x 31.75 mm H).
Weights (approximate):
  • Product Weight: 1.3 Lbs. (0.59 kg).
  • Shipping Weight: 1.5 Lbs. (0.68 kg).
