SMP10C24P8220

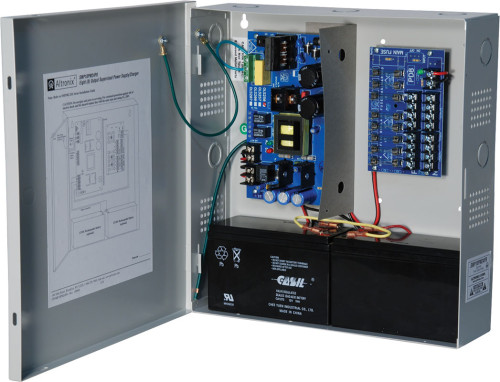

Power Supply Charger, 8 Fused Output, 24VDC @ 10A, 220VAC, BC300 Enclosure

SMP10C24P8220 is a multi-output power supply/charger that converts a 220VAC 50/60Hz input into eight (8) 24VDC outputs.

  • Input
    • Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.8A.
  • Output
    • 24VDC output.
    • 10A supply current.
    • Eight (8) fuse protected outputs.
    • Outputs are rated @ 3.5A.
    • Filtered and electronically regulated outputs.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Zero voltage drop when switching over to battery backup.
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Electrical
    • Operating temperature: 0° C to 49° C ambient.
    • BTU/Hr.: 122.84 BTU/Hr.
    • System AC input VA requirement: 396VA.
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 11.15 Lbs. (5.06 kg).
  • Shipping Weight: 12.15 Lbs. (5.51 kg).
Print
*Batteries sold separately
