SMP10WP24

High Current Outdoor DC Power Supply/Charger

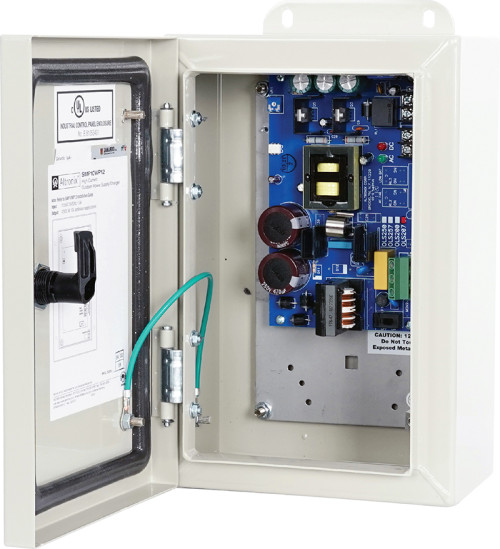

Altronix SMP10WP24 DC Outdoor Power Supply/Charger provides 24VDC and is designed to be conveniently located where power is required. 16 GA steel enclosure finished with heat fused polyester powder is NEMA 4/4X, IP66-11 Rated for outdoor use. It features turn lock and integral flanges to simplify wall or pole mounting.

  • Input
    • Voltage: 115VAC, 60Hz, 2.7A.
  • Outputs
    • Voltage: 24VDC.
    • Current: 10A continuous supply current.
    • Other: Short circuit and thermal overload protection.
    • Filtered and regulated.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current 700mA.
    • Automatic switch over to stand-by battery when AC fails (zero voltage drop).
    • Battery leads included.
    • (Batteries are sold separately).
  • Indicators (LED)
    • Input: Input voltage is present.
    • DC Output: Powered.
  • Electrical
      • Temperature:
        • Operating: - 40º C to 60º C ( - 40º F to 140º F).
        • Storage: - 40º C to 70º C ( - 40º F to 158º F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 24VDC: 123 BTU/Hr.

CE Compliant
Enclosure:
  • NEMA 4/IP 65 Rated enclosure for outdoor use.
  • Dimensions 8"W x 12"H x 6"D (203.2 mm W x 304.8 mm H x 152.4 mm D).
Weights (approximate):
  • Product Weight: 9.9 Lbs. (4.5 kg).
  • Shipping Weight: 11 Lbs. (5 kg).
