SMP7PMP16CB220

Power Supply Charger, 16 PTC Outputs, 12/24VDC @ 6A, 220VAC, Supervision, BC300 Enclosure

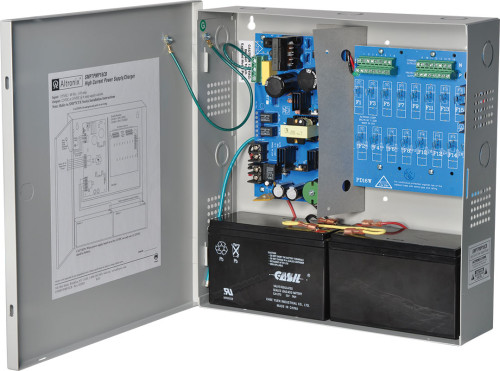

SMP7PMP16CB220 is a multi-output power supply/charger that converts a 220VAC/60Hz input into sixteen (16) PTC protected 12VDC or 24VDC outputs.

  • Input
    • Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.5A.
  • Output
    • 12VDC or 24VDC selectable output.
    • 6A supply current.
    • Sixteen (16) PTC protected outputs (auto-resettable).
    • Outputs are rated @ 2.5A.
    • Filtered and electronically regulated outputs.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current 0.7A.
    • Zero voltage drop when switching over to battery backup.
    • (Batteries are sold separately).
  • Features
    • Power ON/OFF switch.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Battery presence and low battery supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 37 BTU/Hr.
        • 24VDC: 74 BTU/Hr.
    • System AC input VA requirement: 330VA.
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 9.2 Lbs. (4.17 kg).
  • Shipping Weight: 10.6 Lbs. (4.81 kg).
Print
*Batteries sold separately
