T16100C

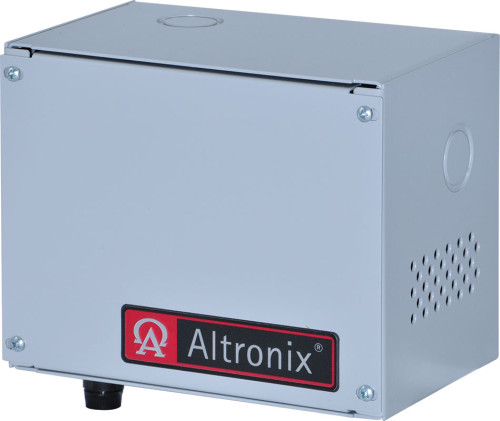

Open Frame Transformer, 16VAC @ 100VA, 115VAC, CAB4 Enclosure

Altronix T16100C AC power supply provides power for electronic power supplies and equipment including security, access control, and surveillance devices.

Input
- 120VAC 50/60 Hz, 1.0A.
Output
- 16VAC/100VA (6.25A).
Features
- Fused input protection.
- Green grounding lead.
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 51 BTU/Hr.
- System AC input VA requirement: 120VA.
