T2PDK75F16SD

16-Door Altronix/PDK Red™ Access and Power Integration Kit - Trove2PD2 with eFlow104NB, eFlow102NB, (2) ACMS8CB, VR6, PD8ULCB. Trove2 Series

News Flash… Altronix lead time for all Trove Access & Power Integration kits are now 15 days max.

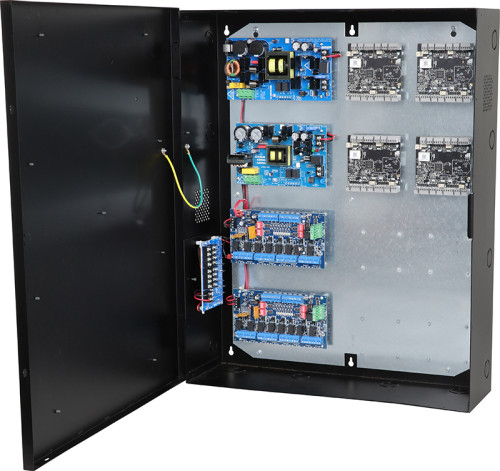

Altronix T2PDK75F16SD kit consists of Trove2 enclosure, TPD2 PDK Red™/Altronix backplane with one (1) 24VDC @ 10A, one (1) 12VDC @ 10A power supply/charger, two (2) eight (8) PTC protected dual input/output access control modules, one (1) 12VDC voltage regulator and one (1) eight (8) PTC protected power distribution modules.
This kit also accommodates up to four (4) PDK Red™ modules for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • eFlow104NB Power Supply/Charger - 1
      • Input
        • Voltage: 120VAC, 60Hz, 4.5A.
        • Main Fuse: 6.5A / 250V.
      • Output
        • Voltage: 24VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • eFlow102NB Power Supply/Charger - 2
      • Input
        • Voltage: 120VAC, 60Hz, 3.5A.
        • Main Fuse: 5A / 250V.
      • Output
        • Voltage: 12VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Both Power Supplies
      • Battery Charging
      • Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure)
      • Type: Sealed lead acid or gel type
      • Failover: Upon AC loss, instantaneous.
      • (Batteries are sold separately).
    • Fire Alarm Disconnect
      • Supervised: Latching or non-latching.
      • EOL: 10K Resistor.
    • Supervision
      • AC Failure: Form “C” contacts.
      • Battery: Form “C” contacts.
      • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
    • Indicators LED
      • AC Input: 120VAC is present.
      • DC Output: Powered.
      • Battery: Discharged or not connected.
    • VR6 Voltage Regulator
        • Input
          • Voltage: 24VDC from eFlow104NB.
        • Output
          • Voltage: 12VDC.
          • Current: 6A continuous.
          • Other: Surge suppression.
        • Indicators LED
          • Input: 24VDC is present.
          • Output: Powered.
    • PD8ULCB Power Distribution Module
        • Input
          • Voltage: 12VDC from eFlow104NB.
        • Outputs
          • Voltage: 12VDC.
          • PTCs: 2.5A.
        • Indicators LED
          • Green LED: DC Output.
    • Two (2) ACMS8CB Dual Input Access Power Controllers
        • Input
          • Voltage: 24VDC from eFlow104NB and 12VDC from VR6.
          • Input PTC: 9A.
        • Outputs
          • Voltage: 12VDC or 24VDC individually selectable.
          • Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
          • a) Fail-Safe and/or Fail-Secure power outputs.
          • b) Form “C” Relays rated 28VAC or VDC @ 2.5A Rated.
          • c) Auxiliary power outputs (unswitched).
          • d) Any combination of the above.
          • Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
          • Individual outputs may be set to OFF position for servicing.
        • Outputs Ratings
          • PTCs: 2.5A.
        • Indicators (LED)
          • Red LEDs: Outputs are triggered (relays energized).
          • Blue LED: FACP disconnect is triggered.
          • Individual voltage LEDs:
          • Green: 12VDC.
          • Red: 24VDC.
    • Environmental
        • Temperature
          • Operating: 0° C to 49° C (32° F to 120° F).
          • Storage: - 20° C to 70° C ( - 4° F to 158° F).
        • Relative Humidity
          • Relative Humidity: 85% +/- 5%.
        • BTU/Hr. (approx.):
          • 290 BTU/Hr.

    CE Compliant

    Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
    Name Qty Description Agency Listings
    Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
    TPD2 1 Trove2 Backplane for Altronix/Pdk Red™
    eFlow104NB 1 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
    eFlow102NB 1 Power Supply Charger, Single Output, 12VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
    ACMS8CB 2 Dual Input Access Power Controller, 8 PTC Protected Outputs, Board
    VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
    PD8ULCB 1 Power Distribution Module, 8 PTC Outputs up to 28VAC/VDC, Board
    Enclosure:
    • Wall mount enclosure for indoor use.
    • Accommodates up to four (4) 12VDC/12AH Batteries.
    • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
    • 3/4" and 1" combination knockouts.
    Weights (approximate):
    • Product Weight: 49.8 Lbs. (22.59 kg).
    • Shipping Weight: 53.55 Lbs. (24.29 kg).
    Print

    Access controllers not included

    *Batteries sold separately
