8-Door Altronix/Paxton Access and Power Integration Kit - Trove2PX2 with eFlow104NBV, ACM8, VR6, PDS8

News Flash… Altronix lead time for all Trove Access & Power Integration kits are now 15 days max.

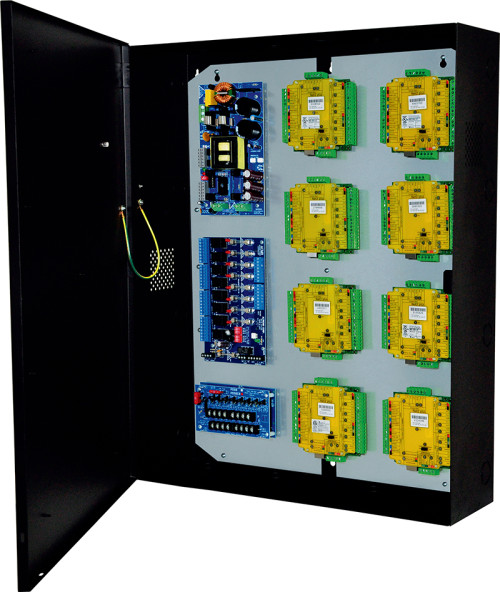

Altronix T2PXK7F8V kit consists of Trove2 enclosure, TPX2 Paxton/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) fuse protected eight (8) output access power controller and one (1) fuse protected eight (8) dual output power distribution module and one (1) voltage regulator.
This kit also accommodates Paxton Net2 Plus boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • eFlow104NBV Power Supply/Charger
      • Input
        • Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A max.
        • Input Fuse: 5A / 250V.
      • Outputs
        • Voltage: 24VDC @ 10A..
        • Auxiliary: 1A (unswitched).
        • Protection: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 12VDC/12AH (2 within enclosure); 40 AH / 65 AH (requires separate enclosure)
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching.
    • EOL: 10K Resistor.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units. Prevents deep battery discharge.
  • Indicators LED
    • AC Input: 220VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • ACM8 Access Power Controller
      • Input
        • Voltage: 12VDC from eFlow102NBV.
        • Main Fuse: 10A / 32V.
      • Outputs
        • Voltage: 12VDC.
        • Eight (8) 24VDC independently controlled fused outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
        • Output Fuses: 3.5A / 32VDC.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • VR6 Voltage Regulator
      • Input/Output
        • Voltage Range: 24VDC @ 3.5A = Output: 12VDC @ 6A.
      • Output
        • Voltage: 12VDC regulated output.
        • Output rating: 6A max.
        • Other: Surge suppression.
      • Indicators LED
        • Input: Indicates input voltage is present.
        • Output: Indicates normal operating condition.
  • PDS8 Dual Output Power Distribution Module
      • Input
        • Voltage Range: 5VDC to 24VDC, up to 10A each, 20A total input.
        • Main Fuse Rating: 10A.
      • Outputs
        • Fuse protected outputs rated @ 3A per output, non power-limited. Total output 20A max.
        • Do not exceed the individual power supply ratings.
        • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • 4.8VDC - 24VDC.
      • Indicators (LED)
        • DC Output: Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red/Green).
        • Features: Multiple units may be daisy-chained to accommodate larger systems.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 113 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2PX2 1 Altronix/Paxton Access and Power Integration Enclosure with Backplane, Trove 2 Series
eFlow104NBV 1 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, Board
ACM8 1 Access Power Controller, 8 Fused Relay Outputs, FAI, Board
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
PDS8 1 Dual Input Power Distribution Module, 8 Fused Outputs
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 51.5 Lbs. (23.36 kg).
  • Shipping Weight: 54.5 Lbs. (24.72 kg).
Print

Access controllers not included

*Batteries sold separately
