14-Door Altronix/Mercury Access and Power Integration Wired Kit - Trove3M3 with (2) eFlow104NBV, (2) ACMS8CB, (2) VR6, (2) PDS8CB, RSB2

News Flash… Altronix lead time for all Trove Access & Power Integration kits are now 15 days max.

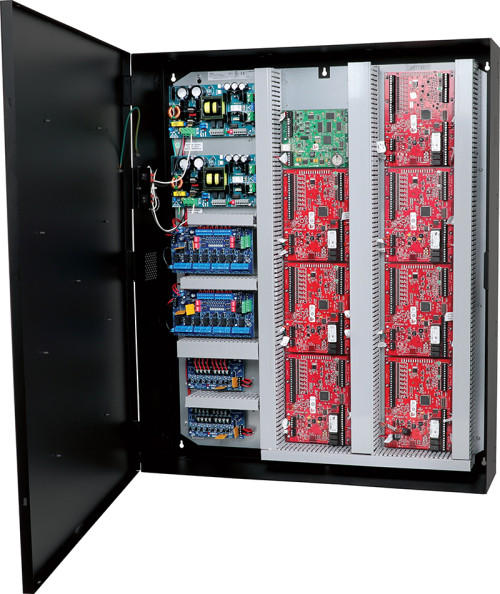

Altronix T3M77XK2DV is a 14-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3M77XK2DV accommodates one (1) Intelligent Controller and seven (7) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt

  • Two (2) eFlow104NBV Power Supply/Chargers
      • Input
        • Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 5.4A.
        • Main Fuse: 6.3A / 250V.
      • Outputs
        • Voltage: 24VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Type: Sealed lead acid or gel type.
    • Fuse Rating: 15A/32V.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching.
    • EOL: 10K Resistor.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
  • Indicators LED
    • Input: 220VAC is present.
    • DC Output: 24VDC is present.
    • Battery: Discharged or not connected.
  • Two (2) ACMS8CB Access Power Controllers
      • Input
        • Voltage: 24VDC from eFlow104NBV and 12VDC from VR6.
        • Input PTC: 9A.
      • Outputs
        • Voltage: 24VDC.
        • Eight (8) 24VDC independently controlled PTC outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
        • Output PTCs: 2.5A.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • Two (2) VR6 Voltage Regulators
      • Input
        • Voltage: 24VDC from eFlow104NBV.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • Two (2) PDS8CB Dual Input Power Distribution Modules
      • Input
        • Voltage: 24VDC from eFlow104NBV and 12VDC from VR6.
        • Input PTCs: 10A/32V.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • PTCs: 2.5A.
      • Indicators LED
        • DC Output: Eight (8) individual output LEDs.
        • Green: 12VDC
        • Red: 24VDC.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 289 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove3 1 Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
TM3 1 Trove3 Backplane for Altronix & Mercury
RSB2 1 Dual Power ON/OFF Rocker Switches with Mounting Bracket
eFlow104NBV 2 Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, Board
ACMS8CB 2 Dual Input Access Power Controller, 8 PTC Protected Outputs, Board
VR6 2 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
PDS8CB 2 Dual Input Power Distribution Module, 8 PTC Outputs
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 85.6 Lbs. (38.83 kg).
  • Shipping Weight: 98.8 Lbs. (44.82 kg).
Configure Trove Print

Access controllers not included

*Batteries sold separately
