T3SK77724SDV

24-Door Altronix/Software House Access and Power Integration Kit - Trove3SH3 with (3) AL1024XB2V, (2) ACMS12CB, (2) PDS16CB, (2) VR6, RSB2, RSB1

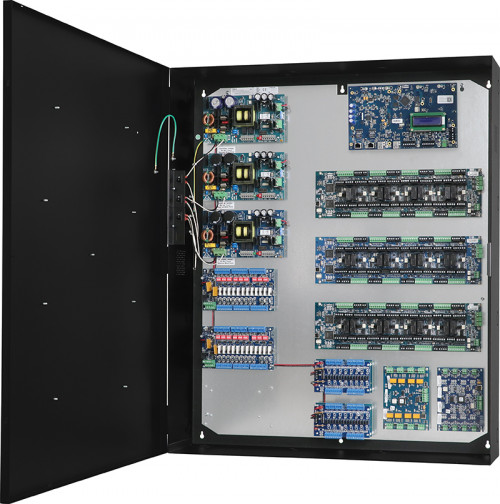

Altronix T3SK77724SDV kit consists of Trove3 enclosure and TSH3 Software House/Altronix backplane with three (3) 24VDC @ 10A power supply/chargers, two (2) twelve (12) PTC protected dual output access control modules, two (2) 12VDC 6A voltage regulators and two (2) sixteen (16) PTC protected dual output power distribution modules. This kit also accommodates various combinations of Software House boards for up to twenty-four (24) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • Three (3) AL1024XB2V Power Supply/Chargers
      • Input
        • Voltage: 220VAC (working range 198VAC-256VAC), 50/60Hz, 2.5A
        • Main Fuse: 5A / 250V.
      • Output
        • Voltage: 24VDC.
        • Current: 10A @ 24VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 12VDC/12AH (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
  • Indicators LED
    • Input: 220VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • Two (2) ACMS12CB Dual Input Access Power Controllers
      • Input
        • Voltage: 24VDC from AL1024XB2V and 12VDC from VR6.
        • Input PTCs: 9A.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Twelve (12) independently controlled PTC outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
      • Outputs Ratings
        • PTCs: 2.5A.
      • Indicators (LED's)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • Two (2) VR6 Voltage Regulators
      • Input
        • Voltage: 24VDC from AL1024XB2V.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • Two (2) PDS16CB Dual Input Power Distribution Modules
      • Input
        • Voltage: 24VDC from AL1024XB2V and 12VDC from VR6.
        • Input PTCs: 9A.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
        • Output PTCs: 2.5A.
      • Indicators (LED)
        • DC Output: Sixteen (16) individual output LEDs.
        • Green: 12VDC
        • Red: 24VDC.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 327 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove3 1 Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
TSH3 1 Trove3 Backplane for Altronix/Software House
AL1024XB2V 3 Power Supply Charger, Single Fused Output, 24VDC @ 10A, 220VAC, Board
ACMS12CB 2 Dual Input Access Power Controller, 12 PTC Protected Outputs, Board
PDS16CB 2 Dual Input Power Distribution Module, 16 PTC Outputs
VR6 2 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
RSB2 1 Dual Power ON/OFF Rocker Switches with Mounting Bracket
RSB1 1 Single Power ON/OFF Rocker Switch with Mounting Bracket
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 87.2 Lbs. (39.6 kg).
  • Shipping Weight: 100.5 Lbs. (45.6 kg).
Configure Trove Print

Access controllers not included

*Batteries sold separately
