TAX2

Trove2 Backplane for Altronix/Axis

News Flash… Altronix lead time for all Trove Access & Power Integration kits are now 15 days max.

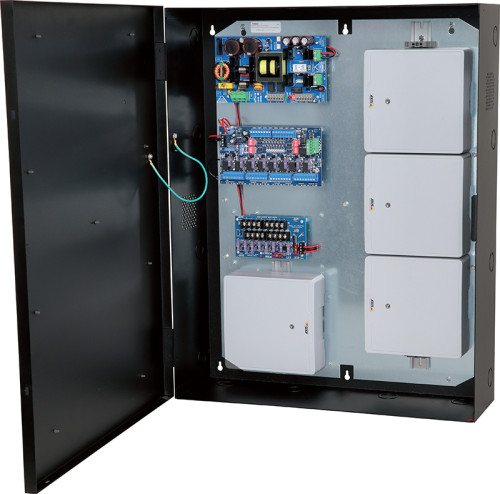

TAX2 accommodates various combinations of Axis boards with or without Altronix power supplies and accessories for access systems.

  • Features
    • 16 AWG backplane.
    • Includes mounting hardware.
      • Accommodates the following Axis Communications Controllers with or without Altronix power/accessories:
        • Axis: Axis 1601, Axis 1610 (mounted onto DIN Rail); Axis 1210
        • Altronix Power Supplies.
        • Altronix Sub-Assemblies.
    • Simplifies board layout and wire management
    • 16 AWG galvanized steel
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Dimensions (approximate):
  • 0.3125"W x 19.375"L x 25.375"H (7.94 mm W x 492.12 mm L x 644.52 mm H).
Weights (approximate):
  • Product Weight: 8 Lbs. (3.63 kg).
  • Shipping Weight: 10 Lbs. (4.53 kg).
Configure Trove Print

Enclosure and Accessories sold separately
