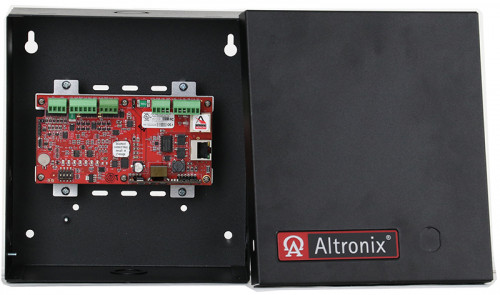

TC100

Access & Power Integration Solution for Altronix/Mercury. Indoor enclosure

Altronix TC100 is a NEMA 1 Rated enclosure that can accommodate a wide variety of Altronix power supplies, sub-assemblies, accessories, or a Mercury MP1501. Altronix enclosures feature ample knockouts that are suitable for 3/4” and 1” conduits. The TC100 can be wall mounted or mounted to various electric boxes such as a single/double gang box or a 1900 electrical box.

  • Features
    • 19 Gauge steel enclosure.
    • Ample knockouts accommodating either 3/4” or 1” conduits for convenient access.
  • Capacity
    • Altronix power supplies, sub-assemblies, accessories, or a Mercury LP1501.

UL Recognized
Dimensions (approximate):
  • 7.4"W x 3.55"L x 8.125"H (188 mm W x 90.2 mm L x 206.4 mm H).
Weights (approximate):
  • Product Weight: 3.8 Lbs. (1.72 kg).
  • Shipping Weight: 4.4 Lbs. (2 kg).
