TIR3

Trove3 Backplane for Altronix/Inner Range

News Flash… Altronix lead time for all Trove Access & Power Integration kits are now 15 days max.

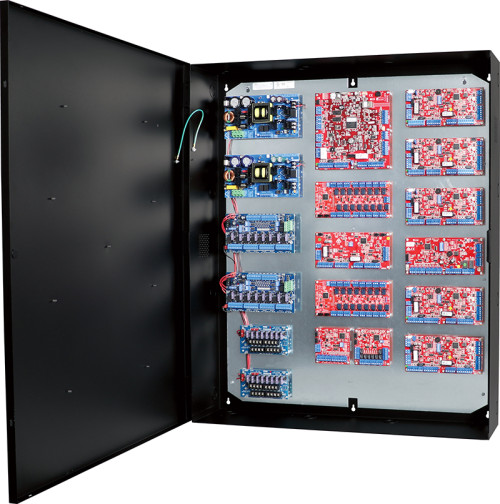

TIR3 accommodates various combinations of Inner Range controllers with or without Altronix power supplies and accessories for access systems.

  • Features
    • 16 AWG backplane.
    • Includes mounting hardware.
      • Accommodates the following Inner Range controllers with or without Altronix power/accessories:
        • Integriti Security Controller, Integriti Access Controller, Integriti Intelligent LAN Access modules, Integriti Standard LAN Access modules, Integriti 8-32 Zone LAN I/O Expander Modules, Standard LAN Access Modules, 8 Zone Expansion Device, Unibus 8 Relay Expander modules, Unibus 8 Relay Auxiliary Expander
        • Altronix Power Supplies.
        • Altronix Sub-Assemblies.
    • Simplifies board layout and wire management
    • 16 AWG galvanized steel
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Dimensions (approximate):
  • 0.3125"W x 28"L x 34"H (7.9 mm W x 711.2 mm L x 863.6 mm H).
Weights (approximate):
  • Product Weight: 20 Lbs. (9.1 kg).
  • Shipping Weight: 25 Lbs. (11.74 kg).
Configure Trove Print

Enclosure and Accessories sold separately
