TM1X

Trove1 Backplane for Altronix/Mercury

News Flash… Altronix lead time for all Trove Access & Power Integration kits are now 15 days max.

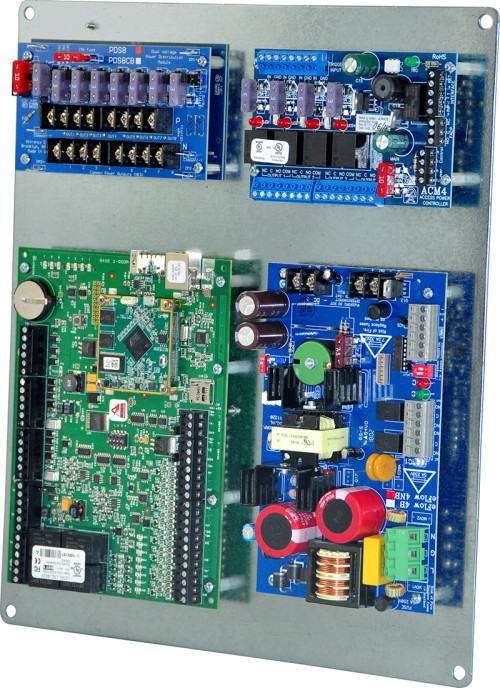

TM1X accommodates various combinations of Mercury boards with or without Altronix power supplies and accessories for access systems.

  • Features
    • 16 AWG backplane.
    • Includes mounting hardware.
      • Accommodates the following controllers with or without Altronix power/accessories:
        • Lenel: LNL-2210, LNL-1300e, LNL-1300, LNL-2220, LNL-4420, LNL-1320, LNL-1100, LNL-1200, LNL-3300, LNL-8000.
        • Mercury: LP1501, MR62e, MR50, LP1502, LP4502,MR52, MR16IN, MR16OUT, LP2500, MUX8
        • Altronix Power Supplies
        • Altronix Sub-Assemblies
    • Simplifies board layout and wire management
    • 16 AWG galvanized steel
Dimensions (approximate):
  • 0.3125"W x 12.875"L x 14.875"H (8 mm W x 327 mm L x 377.8 mm H).
Weights (approximate):
  • Product Weight: 2.75 Lbs. (1.25 kg).
  • Shipping Weight: 3.45 Lbs. (1.56 kg).
Configure Trove Print

Enclosure and Accessories sold separately
