TM3B

Trove3 Backplane for Altronix/Mercury

News Flash… Altronix lead time for all Trove Access & Power Integration kits are now 15 days max.

TM3B accommodates various combinations of Mercury access controllers with or without Altronix power supplies and accessories for access systems.

  • Features
    • 16 AWG backplane.
    • Includes mounting hardware.
      • Accommodates the following Mercury access controllers with or without Altronix power/accessories:
        • Mercury: LP4502, LP1502, MR16IN, MR16OUT, MR52, LP2500, MUX8.
        • Altronix Power Supplies
        • Altronix Sub-Assemblies
        • With optional: DIN Rail (D19) or Thirty-six (36) BR3M mounting brackets.
    • Simplifies board layout and wire management
    • 16 AWG galvanized steel

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings

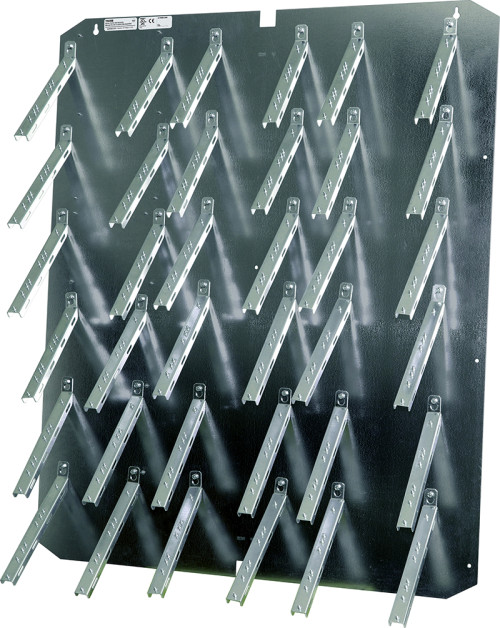

BR3M2PK 36 Angled Brackets for Trove3MB3
Dimensions (approximate):
  • 0.3125"W x 28"L x 34"H (7.9 mm W x 711.2 mm L x 863.6 mm H).
Weights (approximate):
  • Product Weight: 20 Lbs. (9.1 kg).
  • Shipping Weight: 25 Lbs. (11.74 kg).
Configure Trove Print

Enclosure and Accessories sold separately
