TM400

Compact Enclosure for Altronix power distribution and Mercury/LenelS2 Boards

News Flash… Altronix lead time for all Trove Access & Power Integration kits are now 15 days max.

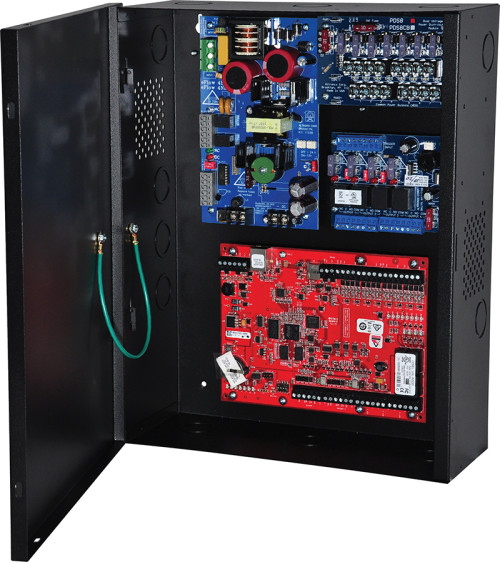

Altronix TM400 enclosure lets you easily integrate Altronix power with Mercury* platform access controllers and accessories. TM400 simplifies board layout and wire management, reduces installation time and labor costs.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

  • TM400 Enclosure accommodates a combination of the following Mercury controllers with or without Altronix power/accessories (sold separately):
    • Mercury: LP1502, LP4502, MR52, MR16IN, MR16OUT, MR62e, LP1501, MR50
    • Altronix Power Supply and Sub-Assembly
  • TM400 Enclosure
    • 16 Gauge powder coated steel enclosure with ample knockouts for convenient access.
    • Convenient knockout configuration: Twelve (12) double knockouts 1.125” (3/4” Conduit) / 1.375” (1” Conduit).
    • Accommodates up to two (2) 12VDC/7AH batteries.
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D).
Weights (approximate):
  • Product Weight: 7.8 Lbs. (3.54 kg).
  • Shipping Weight: 9.1 Lbs. (4.13 kg).
Configure Trove Print

Access controllers not included
