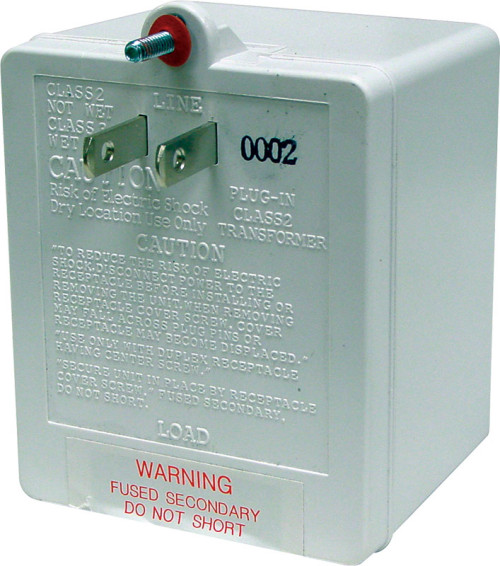

TP1640

Plugin Transformer, 16VAC @ 40VA

Altronix TP1640 transformer provides 16.5VAC with a total of 2.4A output current.

  • Input
    • 115VAC 50/60 Hz, 0.48A.
  • Output
    • 16.5VAC/40VA (2.4A) output.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 20 BTU/Hr.
    • System AC input VA requirement: 55.2VA.
Dimensions (approximate):
  • 2.3"W x 2.6"L x 3.4"H (58.42 mm W x 66.04 mm L x 86.36 mm H).
Weights (approximate):
  • Product Weight: 1.25 Lbs. (0.57 kg).
  • Shipping Weight: 1.55 Lbs. (0.703 kg).
