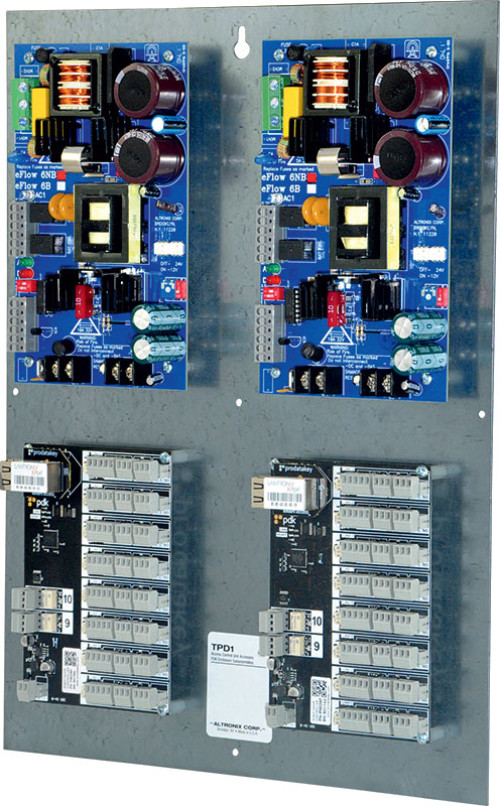

TPD1

Trove1 Backplane for Altronix/PDK

News Flash… Altronix lead time for all Trove Access & Power Integration kits are now 15 days max.

TPD1 accommodates various combinations of PDK modules with or without Altronix accessories.

  • Features
    • 16 AWG backplane.
    • Includes mounting hardware.
      • Accommodates PDK PM-07-EIOE-E boards with or without Altronix power supplies:
        • PDK PM-07-EIOE-E boards
        • Altronix Power Supplies
    • Simplifies board layout and wire management
    • 16 AWG galvanized steel

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Dimensions (approximate):
  • 0.3125"W x 12.5"L x 16.625"H (8 mm W x 317.5 mm L x 422.3 mm H).
Weights (approximate):
  • Product Weight: 3.35 Lbs. (1.52 kg).
  • Shipping Weight: 4 Lbs. (1.81 kg).
Configure Trove Print

Enclosure and Accessories sold separately
