Trove1DR1

Altronix Access and Power Integration Enclosure with Backplane, Trove 1 Series

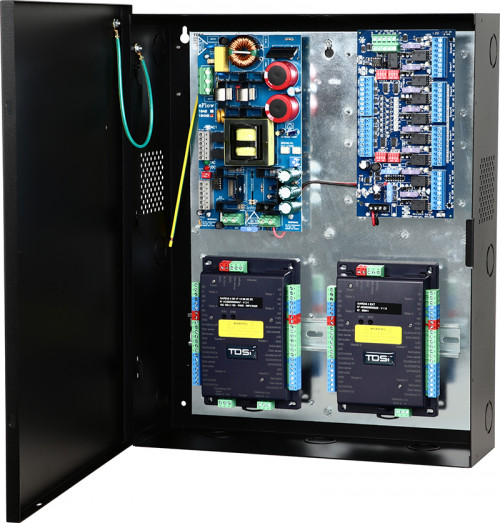

Altronix Trove1DR1 is designed to easily combine Altronix power and subassemblies with DIN Rail mountable products such as access controllers, building automation modules, network switches, utility boxes, terminal blocks and more. The removable backplane accommodates various lengths of DIN Rail to mount in vertically or horizontally, for any security or industrial application.

  • Trove1 enclosure with TDR1 Altronix backplane
      • Backplane accommodates DIN Rail with or without Altronix power supplies/sub-assemblies:
        • - D12
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove1 Enclosure and one (1) removable TDR1 backplane.
  • Trove1 Enclosure
    • 16 AWG powder coated steel enclosure.
    • Convenient knockout configuration:
    • - One (1) double knockout 1.948” (1-1/2” Conduit) / 1.701” (1-1/4” Conduit).
    • - Nine (9) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove1 1 Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
TDR1 1 Trove1 Backplane for Altronix with DIN Rail streamlined package
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
  • 1", 3/4" and 1 1/2" knockouts.
Weights (approximate):
  • Product Weight: 15.15 Lbs. (6.87 kg).
  • Shipping Weight: 19.05 Lbs. (8.64 kg).
Configure Trove Print

Boards not included

*Batteries sold separately
