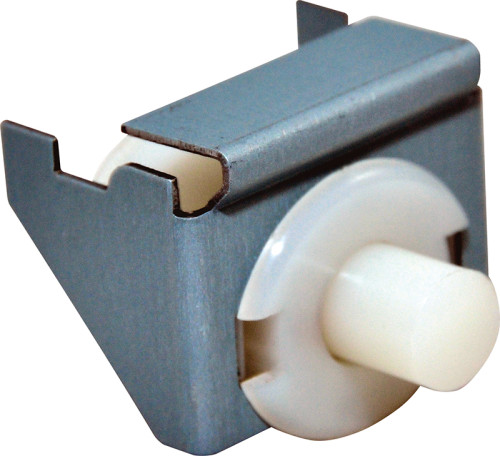

TS112

Plunger Tamper Switch

Altronix TS112 Plunger Tamper Switch functions as a mechanical sensor switch. It can be used as a tamper switch for enclosures or a switch for swinging or sliding doors and windows.

  • Electrical Rating
    • 28VDC, 100mA.
  • Physical and Environmental
      • Dimensions:
        • Barrel Diameter: 0.675” (17.1mm).
        • Barrel Length: 0.85” (21.6mm).
        • Plunger Length: 0.35” (8.9mm).
        • Overall Length: 1.22” (31mm).
      • Temperature
        • Operating: 0ºC to 49ºC (32ºF to 120ºF).
        • Storage: -20ºC to 70ºC (-4ºF to 158ºF).
      • Relative Humidity
        • 85% +/-5%.
Weights (approximate):
  • Product Weight: 0.15 Lbs. (0.07 kg).
  • Shipping Weight: 0.25 Lbs. (0.11 kg).
