TempoA2

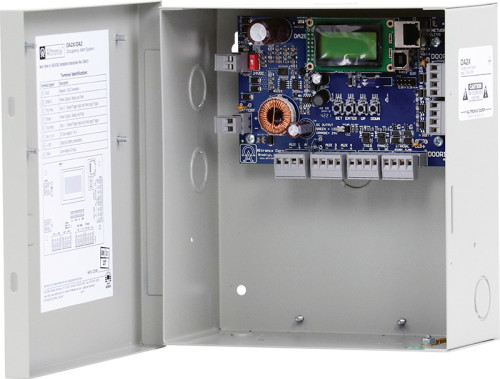

Occupancy Alert System, BC100 Enclosure.

Altronix TempoA2 is designed to alert management when unauthorized loitering occurs in up to (two) secure rooms. TempoA2 has built-in LINQ Technology to remotely monitor, control and report power/diagnostics.

  • Input Power Options
      • AC:
        • 24VAC/50VA Plug-in transformer
      • Trigger:
        • Two (2) Door Sensor/Trigger inputs
        • Two (2) Strobe “Steady” Trigger Inputs
        • Two (2) Strobe “Flash” Trigger Inputs
        • Two (2) “Panic/Emergency” Trigger Inputs
  • Output Options
    • 12VDC/2.5A, 24VDC/1.25A, (30W)
    • Two (2) Strobe Switched Power Outputs
    • Four (4) Aux. Power Outputs
  • Timer
    • Alphanumeric LCD display simplifies programming.
    • EE Prom memory protects against loss of programming due to power failure
    • Momentary and/or Latching Events
  • Battery Charging
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Indicators LED
    • AC Power (Green): Input voltage is present
    • DC Output (Red): 12/24VDC is on
    • Trigger: Active
  • LINQ Technology
    • Remote network management allows for device reset and monitoring
    • Provides local and/or remote access to critical information via LAN/WAN
    • Email and Windows Dashboard Alert notifications report real-time diagnostics
    • Event log tracks history
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 14 BTU/Hr.
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/4AH Batteries.
  • Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 4.85 Lbs. (2.2 kg).
  • Shipping Weight: 5.45 Lbs. (2.47 kg).
