Trove1BL1

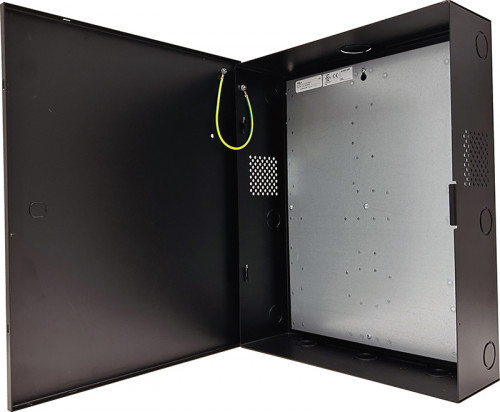

Trove1 enclosure with universal blank backplane (TBL1)

Altronix Trove1BL1 lets you easily integrate Altronix power and accessories with any manufacturer’s boards, equipment, or accessories. This models allows you the option of utilizing Altronix mounting magnets (MM4, MM8, MM12, MM24 – sold separately) to avoid drilling, or drilling your own mounting holes to accommodate access controller boards, power supplies and accessories to customize your own access system. Trove simplifies board layout and wire management, reducing installation time and labor costs.

  • Trove1 enclosure with TBL1 Altronix backplane
      • Backplane accommodates any manufacturer’s boards and equipment:
        • - Various combinations of access control and power supply boards and accessories for access control systems
        • Includes Altronix Trove1 Enclosure and one (1) removable TBL1 backplane
  • Trove1 Enclosure
    • 16 Gauge powder coated steel enclosure.
    • Convenient knockout configuration:
    • - One (1) single knockout 1.948” (1-1/2” Conduit).
    • - Nine (9) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
View Certificate
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
View Certificate

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

TAA Compliant

NDAA Compliant

BAA Compliant
Name Qty Description Agency Listings
Trove1 1 Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
TBL1 1 Universal blank backplane for Trove1BL1
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
  • 1", 3/4" and 1 1/2" knockouts.
Weights (approximate):
  • Product Weight: 15.15 Lbs. (6.87 kg).
  • Shipping Weight: 19.05 Lbs. (8.64 kg).
Configure Trove Print

Boards not included
