Trove1HC1

Altronix/Hartmann Access and Power Integration Enclosure with Backplane, Trove 1 Series

This product is available exclusively through Hartmann Controls. To order call 1-877-411-0101.

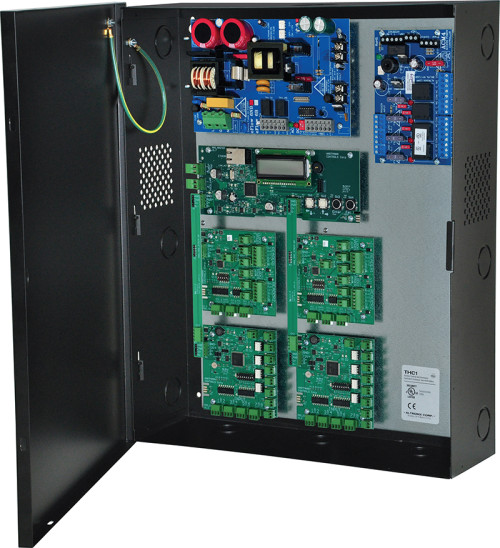

Altronix Trove1HC1 consists of a high-capacity enclosure with removable backplane. This unit easily combines Altronix power/accessories with various combinations of Hartmann Controls boards in a streamlined package. Trove simplifies board layout and wire management, reducing installation time and labor costs.

  • Trove1 enclosure with THC1 Altronix/Hartmann backplane
      • Backplane accommodates a combination of Hartmann controllers with or without Altronix power/accessories:
        • - PRS_MASTER, PRS_TDM and PRS_IO8
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove1 Enclosure and one (1) removable THC1 backplane
  • Trove1 Enclosure
    • 16 AWG powder coated steel enclosure.
    • Convenient knockout configuration:
    • - One (1) double knockout 1.948” (1-1/2” Conduit) / 1.701” (1-1/4” Conduit).
    • - Nine (9) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
View Certificate
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
View Certificate

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

TAA Compliant

NDAA Compliant

BAA Compliant
Name Qty Description Agency Listings
THC1 1 Trove1 Backplane for Altronix/Hartmann
Trove1 1 Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
  • 1", 3/4" and 1 1/2" knockouts.
Weights (approximate):
  • Product Weight: 15.15 Lbs. (6.87 kg).
  • Shipping Weight: 19.05 Lbs. (8.64 kg).
