Trove2BH2

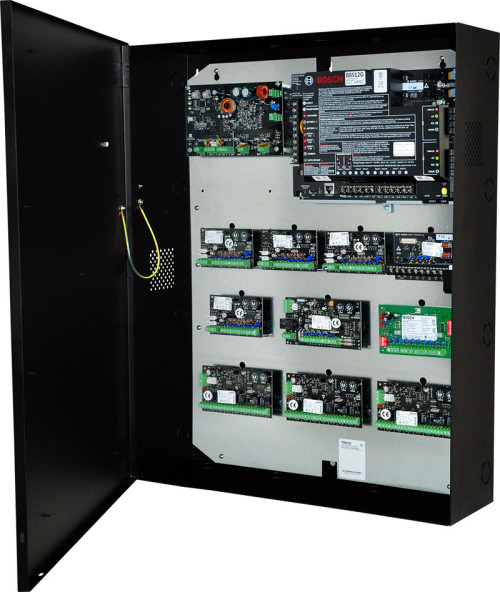

Altronix/BOSCH Access and Power Integration Enclosure with Backplane, Trove 2 Series

Trove2BH2 accommodates various combinations of Bosch boards with or without Altronix accessories for access control systems.

  • Trove2 enclosure with TBH2 Altronix/Bosch backplane
      • Backplane accommodates a combination of Bosch controllers with or without Altronix accessories:
        • - B520, B8512G, B9512G, B208, B299, B308, B426, B450, B600, B901, D125B, D129, D132A, D192G, D426, D450, D7412GV4, D8125/MUX, D8128D, D8129, D8130, D9412GV4 & ICP-SDI-9114
        • - Altronix PD16W or PD16WCB Sub-Assemblies
        • Includes Altronix Trove2 Enclosure and one (1) removable TBH2 backplane
  • Trove2 Enclosure
    • 16 AWG powder coated steel enclosure
    • Simplifies board layout and wire management
    • Convenient knockout configuration:
    • One (1) single knockout 2.415” (2” Conduit).
    • Sixteen (16) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
TBH2 1 Trove2 Backplane for Altronix/Bosch
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 21.75"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 37.1 Lbs. (16.83 kg).
  • Shipping Weight: 40.85 Lbs. (18.53 kg).
Configure Trove Print

Boards not included
