Trove2BL2

Blank/Customizable Access and Power Integration Enclosure with Backplane, Trove 2 Series

Altronix Trove2BL2 let you easily integrate Altronix power and accessories with any manufacturer’s boards, equipment, or accessories. These models allow you the option of utilizing Altronix mounting magnets (MM4, MM8, MM12, MM24 – sold separately) to avoid drilling, or drilling your own mounting holes to accommodate access controller boards, power supplies and accessories to customize your own access system. Trove simplifies board layout and wire management, reducing installation time and labor costs.

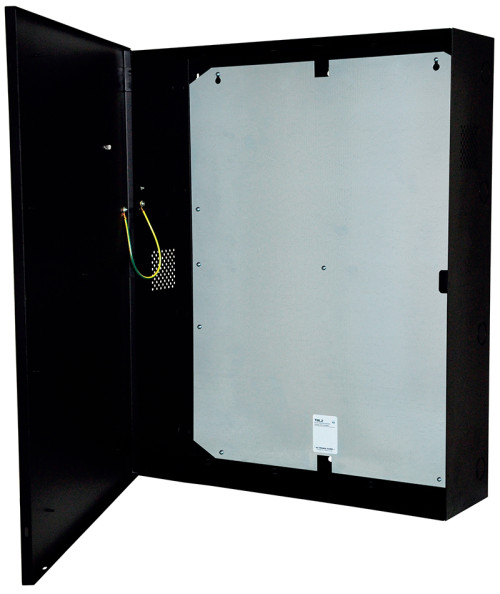

  • Trove2 enclosure with TBL2 backplane
      • Backplane accommodates any manufacturer’s boards and equipment
        • Includes Altronix Trove2 Enclosure and one (1) removable TBL2 backplane
  • Trove2 Enclosure
    • 16 AWG powder coated steel enclosure with a single 2" center knockout on the top of the enclosure plus (16) 2-Stage knockouts for 0.75" or 1" conduit.
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
TBL2 1 Trove2 Blank/Customizable Backplane
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 37.1 Lbs. (16.83 kg).
  • Shipping Weight: 40.85 Lbs. (18.53 kg).
Configure Trove Print

Boards not included

*Batteries sold separately
