Trove2IR2

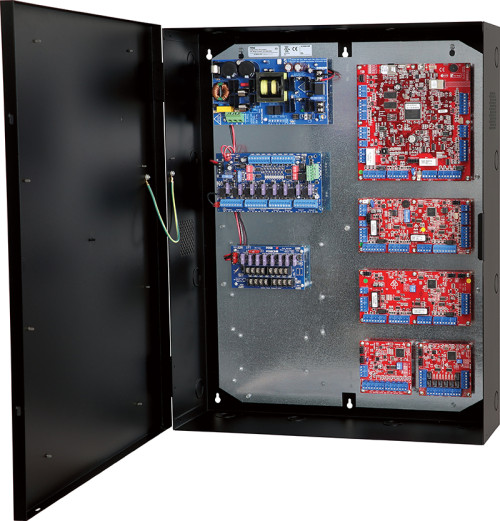

Altronix/Inner Range Access and Power Integration Enclosure with Backplane, Trove 2 Series

Altronix Trove™ enclosures and backplanes let you easily integrate Altronix power with Inner Range access controllers and accessories. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • Trove2 enclosure with TIR2 Altronix/Inner Range backplane
      • Backplane accommodates a combination of Inner Range controllers with or without Altronix accessories:
        • - Inner Range: Integriti Security Controller, Integriti Access Controller, Integriti Intelligent LAN Access modules, Integriti Standard LAN Access modules, Integriti 8-32 Zone LAN I/O Expander Modules, Standard LAN Access Modules, 8 Zone Expansion Device, Unibus 8 Relay Expander modules, Unibus 8 Relay Auxiliary Expander
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove2 Enclosure and one (1) removable TIR2 backplane
  • Trove2 Enclosure
    • 16 AWG powder coated steel enclosure with a single 2" center knockout on the top of the enclosure plus (16) 2-Stage knockouts for 0.75" or 1" conduit.
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TIR2 1 Trove2 Backplane for Altronix/Inner Range
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 37.1 Lbs. (16.83 kg).
  • Shipping Weight: 40.85 Lbs. (18.53 kg).
Configure Trove Print

Boards not included

*Batteries sold separately
