Trove2KH2

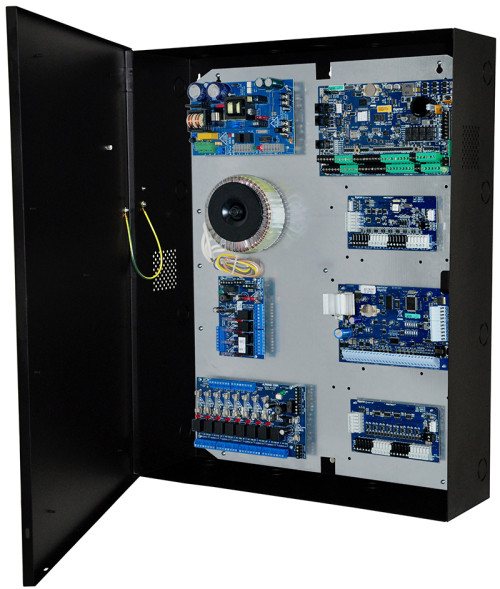

Altronix/Kantech Access and Power Integration Enclosure with Backplane, Trove 2 Series

Trove2KH2 accommodates various combinations of Kantech controllers with or without Altronix power supplies and accessories for access systems.

  • Trove2 enclosure with TKH2 Altronix/Kantech backplane
      • Backplane accommodates a combination of Altronix and Kantech boards:
        • - Kantech: up to (3) KT-400, up to (4) KT-300, up to (4) KT-MOD-INP16 or KT-MOD-OUTP16
        • - Altronix Power Supplies
        • - Altronix T1618300 Transformer
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove2 Enclosure and one (1) removable TKH2 backplane
  • Trove2 Enclosure
    • 16 AWG powder coated steel enclosure
    • Simplifies board layout and wire management
    • Convenient knockout configuration:
    • - One (1) single knockout 2.415” (2” Conduit).
    • - Sixteen (16) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TKH2 1 Trove2 Backplane for Altronix/Kantech
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 37.1 Lbs. (16.83 kg).
  • Shipping Weight: 40.85 Lbs. (18.53 kg).
Configure Trove Print

Boards not included
