Trove2M2

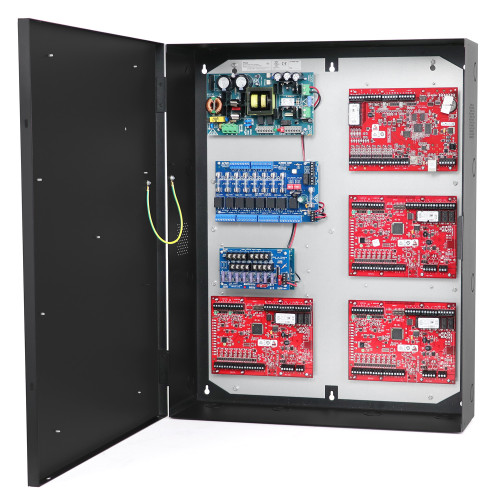

Altronix & Mercury Access and Power Integration Enclosure with Backplane, Trove 2 Series

Trove2M2 accommodates various combinations of Mercury boards with or without Altronix power supplies and accessories for access systems.
*Compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

  • Trove2 enclosure with TM2 Altronix & Mercury backplane
      • Backplane accommodates a combination of Altronix and Mercury boards:
        • - Mercury: LP1502, MR52, MR16IN, MR16OUT, LP2500, MUX8, MR51e, LP1501, MR50, and Genetec Synergis Cloud Link
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove2 Enclosure and one (1) removable TM2 backplane.
    • Also Available: Door Backplane TMV2 (order separately).
    • Accommodates the following Mercury controllers:
    • - LP1502, MR52, MR16IN, MR16OUT, LP2500, MUX8, and Genetec Synergis Cloud Link.
    • Features:
    • - Simplifies board layout and wire management.
    • - 16 AWG galvanized steel.
  • Trove2 Enclosure
    • 16 AWG powder coated steel enclosure
    • Simplifies board layout and wire management
    • Convenient knockout configuration:
    • - One (1) single knockout 2.415” (2” Conduit).
    • - Sixteen (16) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TM2 1 Trove2 Backplane for Altronix & Mercury
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 21.75"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 37.1 Lbs. (16.83 kg).
  • Shipping Weight: 40.85 Lbs. (18.53 kg).
Configure Trove Print

Boards not included

*Batteries sold separately
