Trove2M2DB

Altronix & Mercury/LenelS2 Access and Power Integration Enclosure with Two (2) Backplanes, Trove2 Series

Altronix Trove™ enclosures and backplanes let you easily integrate Altronix power with Mercury access controllers and accessories. Trove simplifies board layout and wire management, reduces installation time and labor costs.

*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle,Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2

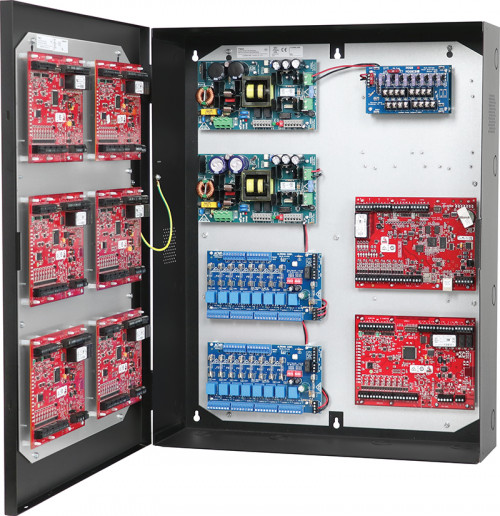

  • Trove2M2DB (Trove2 Enclosure with TM2 Backplane and TMV2 Door Backplane)
      • Backplanes accommodates the following Mercury controllers with or without Altronix power/accessories:
        • - Mercury: LP1502, MR52, MR16IN, MR16OUT, LP2500, MUX8, MR51e, LP1501, MR50, and Genetec Synergis Cloud Link
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove2 enclosure, one (1) removable TM2 backplane and one (1) removable TMV2 door backplane.
  • Trove2 Enclosure
    • Simplifies board layout and wire management
    • Convenient knockout configuration:
    • - One (1) double knockout 1.948” (1-1/2” Conduit) / 1.701” (1-1/4” Conduit).
    • - Nine (9) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • 16 AWG powder coated steel enclosure
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TM2 1 Trove2 Backplane for Altronix & Mercury
TMV2 1 Altronix/Mercury/HID VertX®/Aero® door backplane for Trove2 and Trove3
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 45.1 Lbs. (20.46 kg).
  • Shipping Weight: 49.2 Lbs. (22.32 kg).
Configure Trove Print

Boards not included
