Trove2SF2

Altronix/Swiftlane Access and Power Integration Enclosure with Backplane, Trove 2 Series

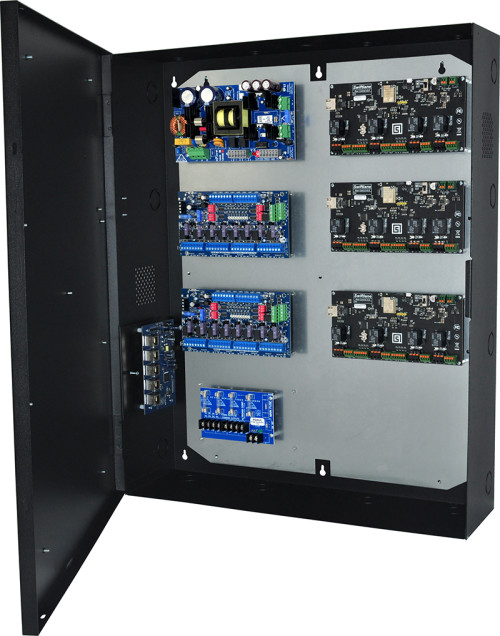

Altronix Trove2SF2 consists of a high-capacity enclosure with removable backplane. This unit easily combines Altronix power/accessories with Swiftlane Controls Door Controllers 5 (SL-DCU-5) in a streamlined package. Trove simplifies board layout and wire management, reducing installation time and labor costs.

  • Trove2 enclosure with TSF2 Altronix/Swiftlane backplane
      • Backplane accommodates a combination of Swiftlane Controls Door Controllers 5 (SL-DCU-5) with or without Altronix accessories:
        • - Up to three (3) Swiftlane Controls Door Controllers 5 (SL-DCU-5)
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove2 Enclosure and one (1) removable TSF2 backplane
  • Trove2 Enclosure
    • 16 AWG powder coated steel enclosure
    • Simplifies board layout and wire management
    • Convenient knockout configuration:
    • - One (1) single knockout 2.415” (2” Conduit).
    • - Sixteen (16) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
TSF2 1 Trove2 Backplane for Altronix/Swiftlane
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/7AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 37.1 Lbs. (16.83 kg).
  • Shipping Weight: 40.85 Lbs. (18.53 kg).
Print

Boards not included

*Batteries sold separately
