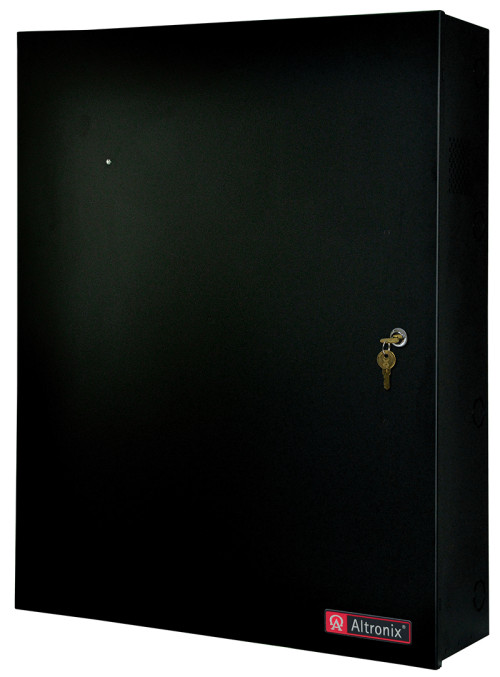

Trove3BL3

Blank/Customizable Access and Power Integration Enclosure with Backplane, Trove3 Series

Altronix Trove3BL3 let you easily integrate Altronix power and accessories with any manufacturer’s boards, equipment, or accessories. These models allow you the option of utilizing Altronix mounting magnets (MM4, MM8, MM12, MM24 – sold separately) to avoid drilling, or drilling your own mounting holes to accommodate access controller boards, power supplies and accessories to customize your own access system. Trove simplifies board layout and wire management, reducing installation time and labor costs.

  • Trove3 enclosure with TBL3 backplane
      • Backplane accommodates any manufacturer’s boards and equipment
        • Includes Altronix Trove3 Enclosure and one (1) removable TBL3 backplane
  • Trove3 Enclosure
    • 16 AWG powder coated steel enclosure
    • Simplifies board layout and wire management
    • Convenient knockout configuration:
    • - One (1) single knockout 2.415” (2” Conduit).
    • - One (1) double knockout 1.948” (1.5” Conduit) / 1.701” (1.25” Conduit).
    • - Sixteen (16) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove3 1 Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
TBL3 1 Trove3 Blank/Customizable Backplane
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 80 Lbs. (36.29 kg).
  • Shipping Weight: 92 Lbs. (41.73 kg).
Configure Trove Print

Boards not included

*Batteries sold separately
