Trove3DR3

Altronix Access and Power Integration Enclosure with Backplane, Trove 3 Series

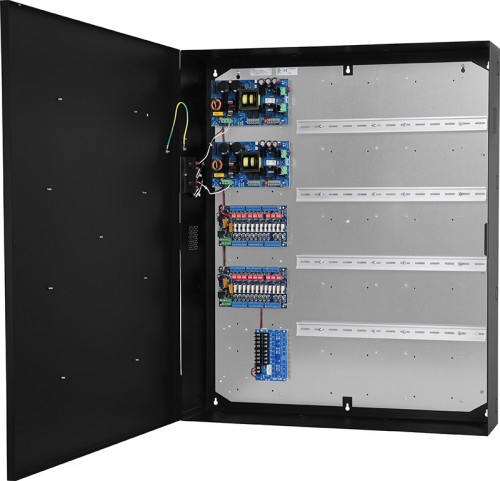

Altronix Trove3DR3 is designed to easily combine Altronix power and sub-assemblies with DIN Rail mountable products such as access controllers, building automation modules, network switches, utility boxes, terminal blocks and more. The removable backplane accommodates various lengths of DIN Rail to mount in vertically or horizontally, for any security or industrial application.

  • Trove3 enclosure with TV3 Altronix backplane
      • Backplane accommodates DIN Rail with or without Altronix power supplies/sub-assemblies:
        • - D10, D12, D19 (four included), D24
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove3 Enclosure and one (1) removable TV3 backplane.
  • Trove2 Enclosure
    • 16 Gauge powder coated steel enclosure
    • Simplifies board layout and wire management
    • Convenient knockout configuration:
    • - One (1) single knockout 2.415” (2” Conduit).
    • - Two (2) double knockouts 1.948” (1.5” Conduit) / 1.701” (1.25” Conduit).
    • - Thirteen (13) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • Accommodates up to four (4) 12VDC/12AH batteries.
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
View Certificate
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
View Certificate

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.

TAA Compliant

NDAA Compliant

BAA Compliant
Name Qty Description Agency Listings
Trove3 1 Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
TV3 1 Trove3 Backplane for Altronix/HID-Vertx
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 80 Lbs. (36.29 kg).
  • Shipping Weight: 92 Lbs. (41.73 kg).
Configure Trove Print

Boards not included

*Batteries sold separately
