Trove3V3

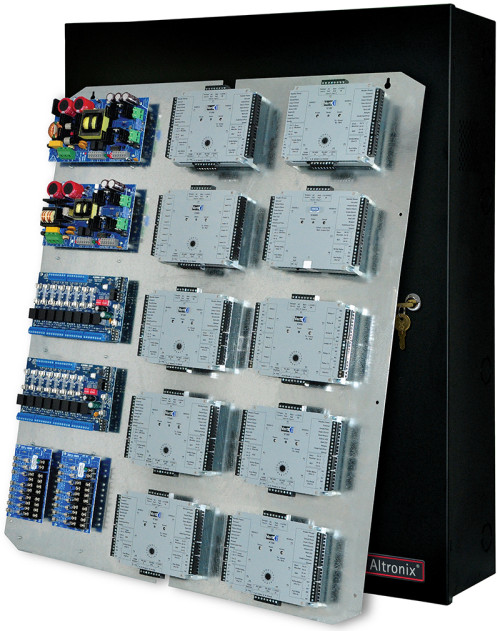

Altronix/HID-Vertx House Access and Power Integration Enclosure with Backplane, Trove3 Series

Trove3V3 accommodates various combinations of Vertx boards with or without Altronix power supplies and accessories for access systems.

  • Trove3 enclosure with TV3 Altronix/HID VertX backplane
      • Backplane accommodates a combination of HID VertX® controllers with or without Altronix accessories:
        • - HID Vertx® V100, V200, V300, V1000, V2000, and Genetec Synergis Cloud Link
        • - Altronix Power Supplies
        • - Altronix Sub-Assemblies
        • Includes Altronix Trove3 Enclosure and one (1) removable TV3 backplane
    • Also Available: Door Backplane TMV2 (order separately).
    • Accommodates the following HID Aero&trade controllers:
    • - HID AeroTM X100, X200, X300, X1100 and Genetec Synergis Cloud Link.
    • Features:
    • - Simplifies board layout and wire management.
    • - 16 AWG galvanized steel.
  • Trove3 Enclosure
    • 16 AWG powder coated steel enclosure
    • Simplifies board layout and wire management
    • Convenient knockout configuration:
    • - One (1) single knockout 2.415” (2” Conduit).
    • - One (1) double knockout 1.948” (1.5” Conduit) / 1.701” (1.25” Conduit).
    • - Sixteen (16) double knockouts 1.362” (1” Conduit) / 1.115” (3/4” Conduit).
    • Includes: One (1) cam lock, one (1) tamper switch and mounting hardware.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove3 1 Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
TV3 1 Trove3 Backplane for Altronix/HID-Vertx
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weight: 80 Lbs. (36.29 kg).
  • Shipping Weight: 92 Lbs. (41.73 kg).
Configure Trove Print

Boards not included

*Batteries sold separately
