WPTV248300ULCB

CCTV Power Supply, Outdoor, 8 PTC Outputs, 24/28VAC @ 12.5A, 115VAC, WP1 Enclosure

This product replaces

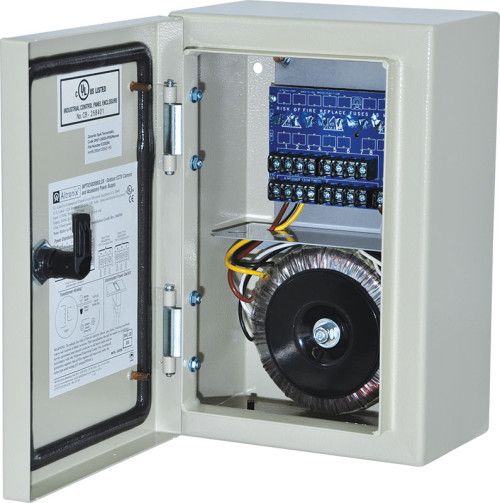

Altronix WPTV248300ULCB outdoor CCTV Power Supply provides power via eight (8) PTC protected Class 2 rated power-limited outputs for CCTV Cameras, heaters, and other video accessories.

Input
- 115VAC, 50/60Hz, 2.7A.
Output
- Eight (8) Class 2 Rated PTC protected powerlimited outputs (auto-resettable).
- 24VAC @ 12.5A (300VA) supply current or 28VAC @ 10A (175VA) supply current.
- Outputs are rated @ 2.5A.
- Surge suppression.
Features
- Secondary fuse rated @ 5A/250V.
- Unit maintains camera synchronization.
- AC power LED.
- Power ON/OFF switch.
- Spare fuses provided. (all models w/primary and/or secondary fuses).
- NEMA 4 Rated enclosure for outdoor use.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 154 BTU/Hr.
- System AC input VA requirement: 202.4VA.
