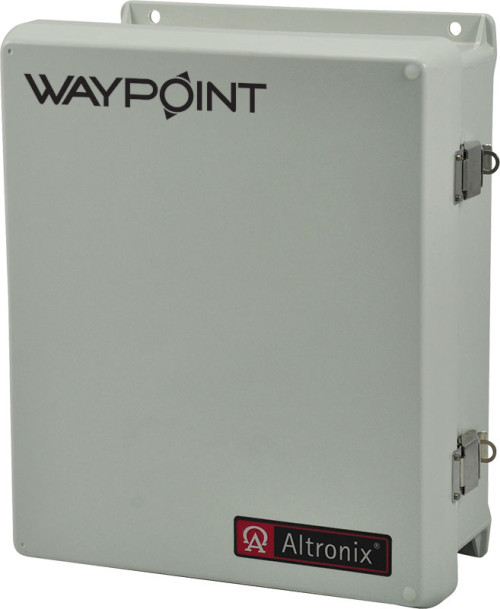

WayPoint17A8U

CCTV Power Supply, Outdoor, 8 Fused Outputs, 24/28VAC @ 7.25A, 115/220VAC, WP3 Enclosure

This product replaces WayPoint17A4U, WPTV244175UL and WPTV248175UL

WayPoint17A8U Outdoor Power Supply provides 24VAC or 28VAC distributed via eight (8) fuse protected outputs for powering CCTV Cameras, heaters, and other video accessories.

  • Input
    • Input: 115VAC, 50/60Hz, 2.0A or 230VAC, 50/60Hz, 1.0A.
  • Output
      • Output options:
        • a. 24VAC @ 7.25A max.
        • b. 28VAC @ 6.25A max.
    • Output fuses rated @ 5A/32V.
  • Visual Indicators
    • Individual power output LED indicators.
    • Illuminated master power switch.
  • Temperature
      • Operating Temperature:
        • 24VAC @ 7.25A output: - 40° C to 60° C ( - 40° F to 140° F).
        • 28VAC @ 6.25A output: - 40° C to 70° C ( - 40° F to 158° F).
    • Storage Temperature: - 40° C to 75° C ( - 40° F to 167° F).
    • Relative Humidity: 85%, +/- 5%.
    • BTU/Hr. (approx.): 90 BTU/Hr.
    • System AC input VA requirement: 230VA.
  • Operating Altitude
    • - 304.8 to 2000m ( - 1000 to 6,561.679 ft.).
UL Listed For:
Information Technology Equipment (UL60950-1)
View Certificate
Information Technology Equipment (UL60950-22)
View Certificate
cUL Listed For:
Information Technology Equipment
View Certificate

CE Compliant

TAA Compliant

NDAA Compliant

BAA Compliant
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weight: 13.45 Lbs. (6.1 kg).
  • Shipping Weight: 14.56 Lbs. (6.6 kg).
