WayPoint5

Power Supply/Charger, Outdoor, Single Output 12/24VDC @ 3.5A, 115/220VAC, WP3 Enclosure

This product replaces

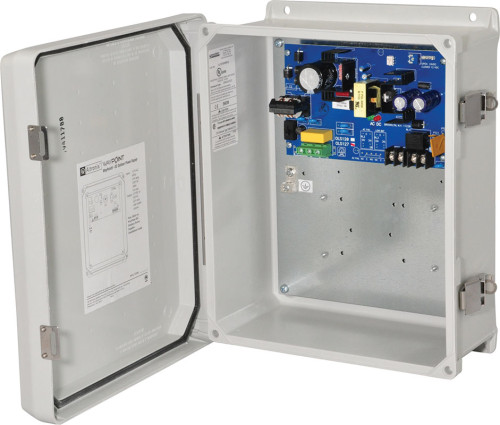

Altronix WayPoint5 DC Outdoor Power Supply/Charger provides 12VDC or 24VDC and is designed to be conveniently located where power is required. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use and accommodates up to two (2) 12VDC/7AH batteries. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.

  • Input
    • 115VAC, 60Hz, 0.95A or 230VAC, 50Hz, 0.6A.
  • Output
    • 12VDC or 24VDC selectable output.
    • 3.5A continuous supply current.
    • Filtered and electronically regulated output.
    • Thermal overload and short circuit protection.
  • Features
    • AC and DC power LED indicators.
    • Ease of installation saves time and eliminates costly labor.
    • Includes battery leads.
  • Battery Charging
    • Capacity: 12VDC/7AH (1 or 2 within enclosure); Up to 40AH/65AH (Separate ventilated enclosure is required)
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Temperature
    • Operating: - 40° C to 55° C (-40° F to 131° F).
    • Storage: - 40° C to 70° C (-40° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 21 BTU/Hr.
        • 24VDC: 42 BTU/Hr.
      • System AC input VA requirement:
        • 115VAC: 109.25VA.
        • 230VAC: 138VA.

CE Compliant
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weight: 9.2 Lbs. (5.19 kg).
  • Shipping Weight: 10.5 Lbs. (5.78 kg).
Print
*Batteries sold separately
