eBridge100TM

EoC or Long Range Ethernet Single Port Transceiver, 100Mbps, Passes PoE/PoE+, Requires Compatible Receiver

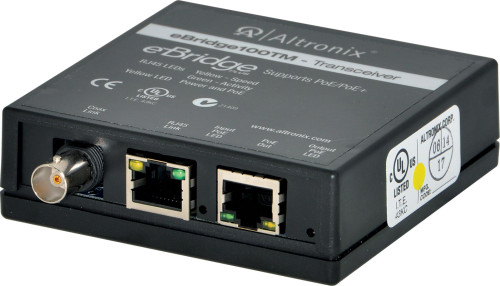

Altronix eBridge100TM EoC hardened transceiver transmits data at 100Mbps, Full Duplex over Coax cable to a paired eBridge receiver and provides power in a PoE/PoE+ compliant format to an enabled device/camera. The eBridge receiver is available in various options and is powered by an external midspan or endspan. The receiver passes PoE/PoE+ power over the same coax cable to the eBridge100TM transceiver, which, in turn, passes this power to an enabled IP camera/device. These plug and play units facilitate a cost-effective, simple way to replace legacy analog products with new IP devices over existing coax up to 300m. When paired with the eBridge100RM EoC Receiver, the eBridge100TM will pass 100Mbps full duplex data and PoE/PoE+ over CAT5e (or higher) up to 500m.

Compatible Receivers
- eBridge100RM, eBridge400PCRM,
- eBridge800PCRM, and eBridge1600PCRM.
- eBridge800E
- Visit www.altronix.com for the latest compatibility list.
Input
- Operating power provided by eBridge receiver.
- Current draw: 1.5W
- PoE compliant to IEEE 802.3af (15W) and
- PoE+ compliant to IEEE 802.3at (30W) from eBridge receivers.*
Coax link
- Throughput is rated to pass 100Mbps of data at distances up to 300m. for power delivery.
- Connectivity: BNC, RG-59/U or similar. CAT5e or Higher from eBridge100RM:
- Distance: up to 500m @ 100Mbps for power delivery.
LED Indicators
- Green - PoE ON (by respective RJ45 jack).
- Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
- Blue: Coax Link is active.
Temperature
Operating Altitude
- -304.8 to 2,000m.
Functions
- Auto detection and protection of legacy non-PoE cameras/devices.
