eBridge1PCRT

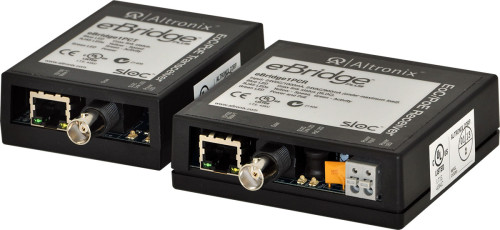

EoC Single Port Adapter Kit, 25Mbps, Generates PoE, Receiver Requires 24VDC or 24VAC, Includes Receiver & Transceiver

eBridge1PCR and eBridge1PCT are CAT5 to Coax cable Ethernet adapters that deliver data and power over the coax cable in a PoE compliant format. The paired set enables fast 10/100Base-T Ethernet digital communication to be transmitted over Coax cable. An eBridge1PCR receiver sends power over the coax to the eBridge1PCT transmitter under PoE protocol. The eBridge1PCT in turn delivers that PoE compliant power to a PoE enabled camera or IP device. eBridge1PCR will not deliver power to non-compliant devices, thus avoiding damage to improperly connected analog cameras. These plug and play units facilitate system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission and power over the Coax is possible up to 500m in comparison to 100m Ethernet maximum distance (see Maximum Length of Coax Type vs. Camera Power/PoE Class, pg. 3). A maximum range from headend to the PoE camera/device is 700m, taking into consideration that up to 100m of structured cable may be deployed at each end.

  • Input
    • 24VDC Class 2 power supply (polarity not observed) or 24VAC Class 2 plug-in transformer.
  • Power Consumption (under maximum load)
    • eBridge1PCR:
    • 24VDC/1,000mA or 24VAC/900mA.
    • eBridge1PCT: Powered by eBridge1PCR.
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5 or better structured cable.
    • Distance: up to 100m.
    • Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) delivered to camera by eBridge1PCT.
    • Power provided by eBridge1PCR to eBridge1PCT by PoE protocol.
  • Coax
    • Distance: up to 500m (see Maximum Length of Coax Type vs. Camera Power/PoE Class, pg. 3) for power delivery of coax.
    • Throughput is rated to pass 25Mbps of data at distances up to 500m. With proper headend equipment this supports Megapixel, HD720, HD1080.
    • Connectivity: BNC, RG-59/U or similar.
  • LED Indicators
      • eBridge1PCR:
        • Blue LED - Coax link connection.
        • Green LED - PoE ON.
        • Green LED - Power ON.
        • eBridge1PCR (RJ45): Yellow and Green LED IP Link status, 10/100Base-T/active.
      • eBridge1PCT:
        • Blue LED - Coax link connection.
        • Green LED - PoE from eBridge1PCR.
  • Environmental
      • Operating Temperature:
    • eBridge1PCR:
      • - 20° C to +45° C ( - 4° F to 113° F).
    • eBridge1PCT:
      • For 15W: - 40° C to 75° C ( - 40° F to 167° F).
        • Storage Temperature:
          • - 30° to 70° C (-22° to 158° F).
      • Humidity: 20 to 85%, non-condensing.
        • BTU/Hr. (eBridge1PCR approx.):
          • 24VDC: 12 BTU/Hr.
          • 24VDC: 11 BTU/Hr.
        • Operating Altitude:
          • - 304.8 to 2,000m ( - 1,000 to 6,561.679 ft.).
    • Functions
      • Auto detection and protection of legacy non-PoE cameras/devices.
    UL Listed For:
    Information Technology Equipment (UL60950-1)
    Download File
    cUL Listed For:
    Information Technology Equipment
    Download File

    CE Compliant

    C-TICK Compliant

    Components of this kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
    Name Qty Description Agency Listings
    eBridge1PCR 1 EoC Single Port Receiver, 25Mbps, Generates PoE, 24VDC or 24VAC, Requires Compatible Transceiver
    eBridge1PCT 1 EoC Single Port Transceiver, 25Mbps, Passes PoE from Receiver, Requires Compatible Receiver
    Enclosure:
    • Modular plastic case.
    • Dimensions 2.5"W x 1"H x 3.8"D (64 mm W x 25 mm H x 97 mm D).
    Weights (approximate):
    • Product Weight: 0.4 Lbs. (0.18 kg).
    • Shipping Weight: 1 Lbs. (0.45 kg).
