eFlow102NXV

Power Supply Charger, Single Output, 12VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC400 Enclosure

Altronix eFlow102NXV is a power supply/charger that converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a single 12VDC output with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

  • Input
    • 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.1A.
    • Input fuse: 5A/250V.
  • Output
    • 12VDC @ 10A supply current.
    • Auxiliary output rated @ 1A (unswitched).
    • Overvoltage protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current: 1.54A.
    • Automatic switch over to stand-by battery when AC fails.
    • Transfer to stand-by battery power is instantaneous with no interruption.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
    • Battery fail and presence supervision (form "C" contacts).
    • Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% (depending on the power supply). Prevents deep battery discharge.
  • Fire Alarm Disconnect
    • Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 61 BTU/Hr.
    • System AC input VA requirement: 462VA.
  • Visual Indicators
    • Green AC Power LED indicates 220VAC present.
    • AC input and DC output LED indicators.
  • Additional Features
    • Short circuit and overload protection.

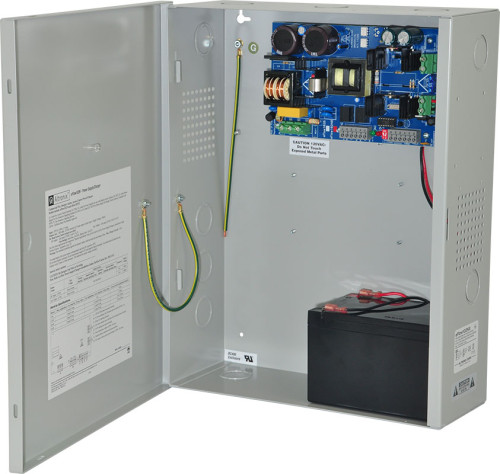

    • Unit is complete with power supply, enclosure, battery leads, and cam lock.

CE Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to one (1) 12VDC/12AH Batteries.
  • Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weight: 8.4 Lbs. (3.81 kg).
  • Shipping Weight: 9.5 Lbs. (4.31 kg).
Print
*Batteries sold separately
