eFlow104N8D

Power Supply Charger, 8 PTC Class 2 Outputs, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, BC300 Enclosure

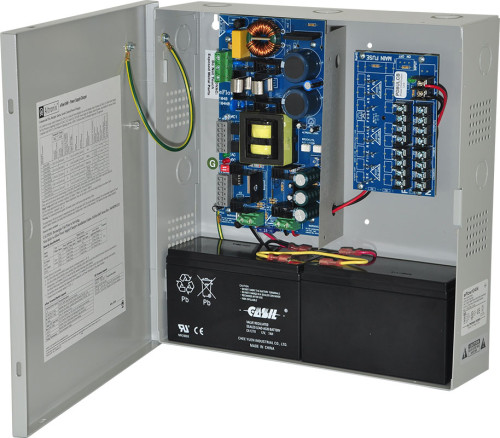

Altronix eFlow104N8D is a power supply/charger that converts a 120VAC 60Hz input into eight (8) Class 2 power-limited PTC protected 24VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

  • Input
    • 120VAC, 60Hz, 4.5A.
    • Input fuse: 5A/250V.
  • Output
    • Eight (8) Class 2 power-limited PTC protected outputs (auto-resettable).
    • Outputs are rated @ 2A.
    • 24VDC @ 10.0A supply current.
    • Auxiliary Class 2 Power-Limited output rated @ 1A (unswitched).
    • Overvoltage Protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current: 1.0A.
    • Automatic switch over to stand-by battery when AC fails.
    • Transfer to stand-by battery power is instantaneous with no interruption.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
    • Battery fail & presence supervision (form "C" contacts).
    • Low power shutdown. Shuts down DC output terminals if battery voltage drops below 70-75% (depending on the power supply). Prevents deep battery discharge.
  • Fire Alarm Disconnect
    • Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 123 BTU/Hr.
    • System AC input VA requirement: 540VA.
  • Visual Indicators
    • Green AC Power LED indicates 120VAC present.
    • AC input and DC output LED indicators.
  • Additional Features
    • Short circuit and overload protection.
    • Unit is complete with power supply, enclosure, battery leads and cam lock.
UL Listed For:
Access Control System Units (UL294)
Download File
Power Supplies for use with Burglar Alarm Systems (UL603)
Download File
Power Supplies for Fire Protective Signaling Systems (UL1481)
Download File
cUL Listed For:
ULC-S318-96 - Power Supplies for Burglar Alarm Systems. Also suitable for Access Control.
Download File

CSFM - California State Fire Marshal Approved
Download File

CE Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 6.95 Lbs. (3.15 kg).
  • Shipping Weight: 7.85 Lbs. (3.56 kg).
Print
*Batteries sold separately
